3-73
Confidential
8.28 LASER UNIT
(1) Remove the three Taptite cup S M3x6 SR screws and the Taptite pan (S/P washer) S
M3x8 screw, and then remove the Laser unit from the Main body.
Memo :
Ensure when you remove the Laser unit that the DEV joint link is pulled out.

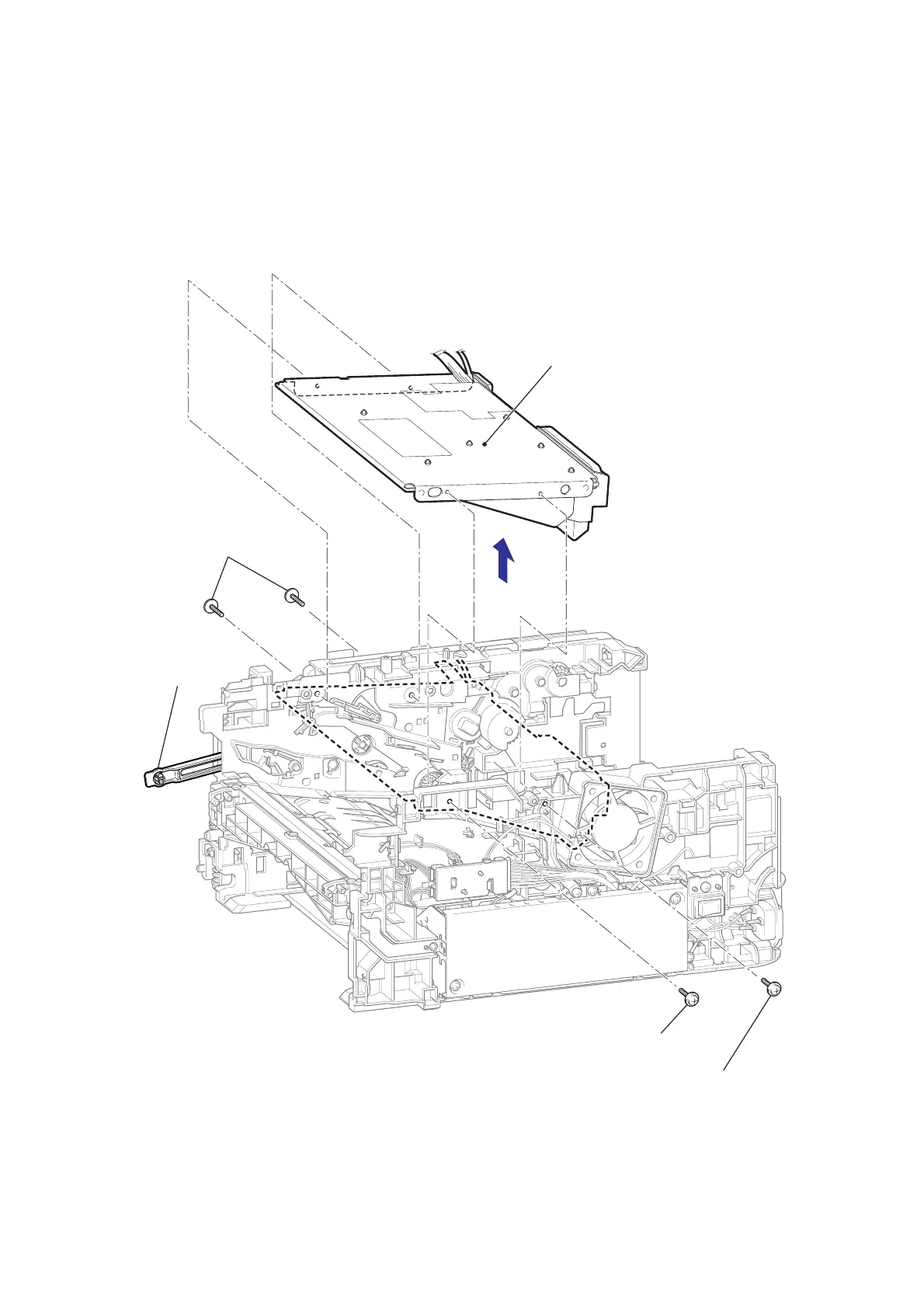

Fig. 3-73
Taptite cup S M3x6 SR
Taptite cup S M3x6 SR
DEV joint link
Laser unit
Taptite pan (S/P washer) S M3x8
<Right side>
