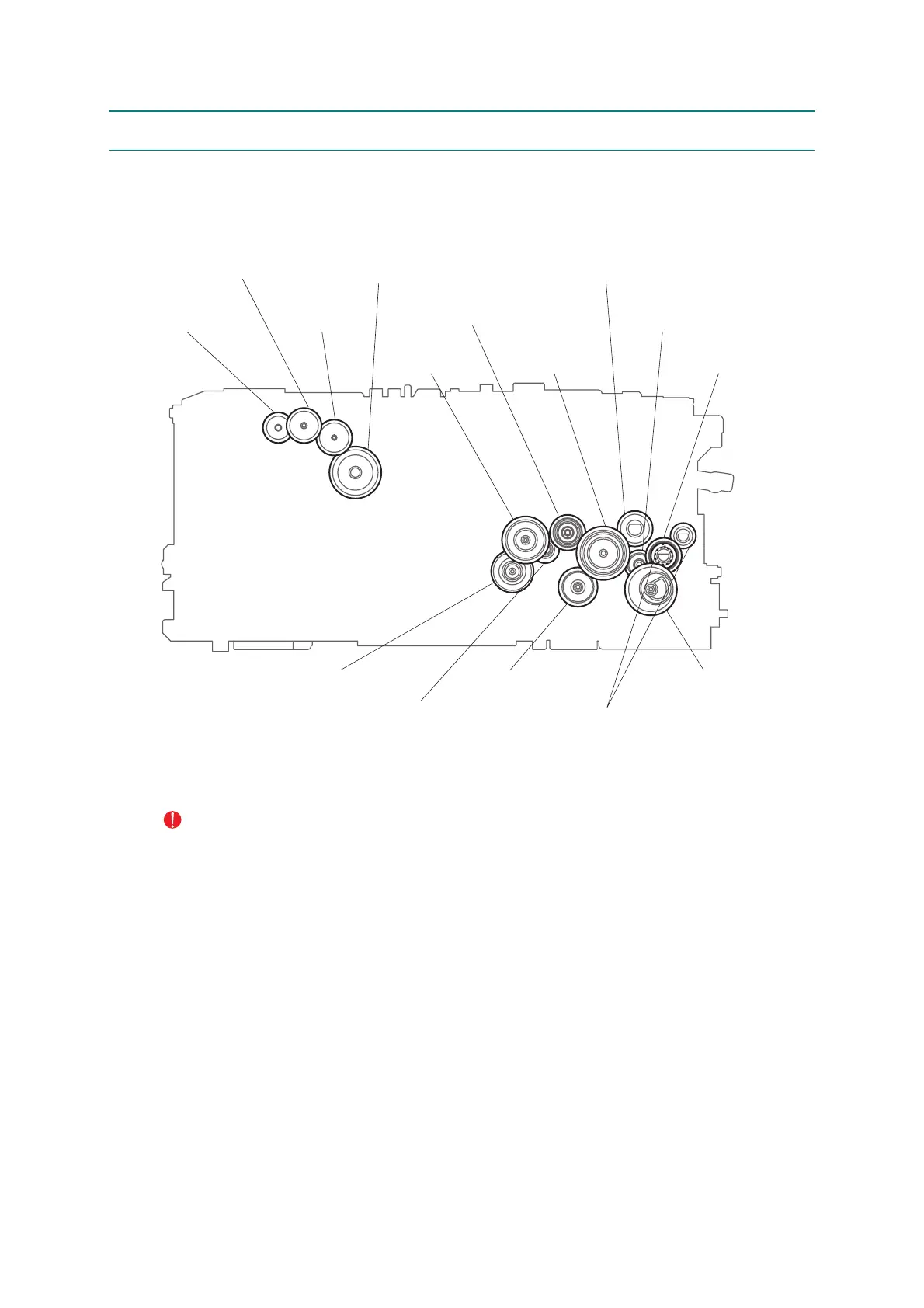

5. OVERVIEW OF GEARS
Fig. 3-5
CAUTION:
The part codes of gears are subject to change without notice.
FEEDER GEAR 17 TERMINAL
(LU2129001)
REGISTRATION GEAR 25 TERMINAL
(LU2128001)
EJECTOR GEAR 17
(LU2016001)
EJECTOR GEAR 15/25
(LU2018001)
EJECTOR GEAR 26
(LU2017001)
FUSER GEAR 22/37
(LU2015001)
DEV GEAR 17/33L
(LU2054001)
REGISTRATION GEAR
27 PENDULUM
(LU2048001)
REGISTRATION
DIFFERENTIAL
GEAR ASSY
(LU2049001)
FEEDER GEAR 17/22
(LU2043001)
FEEDER GEAR 26/20
(LU2042001)
DEV GEAR 17/18R/47R
(LU2053001)
REGISTRATION GEAR 19
(LU2047001)
P/P GEAR 29 SECTOR
(LU2045001)
T1 GEAR 38/31 SECTOR
(LU2044001)
( ) is part code.
