8.11.5 DOCUMENT SEPARATOR ROLLER SHAFT ASSY
(1) Remove the Separator roller shaft ASSY from the ADF unit.
(2) Remove the Separator roller bushing from the Separator roller shaft ASSY.

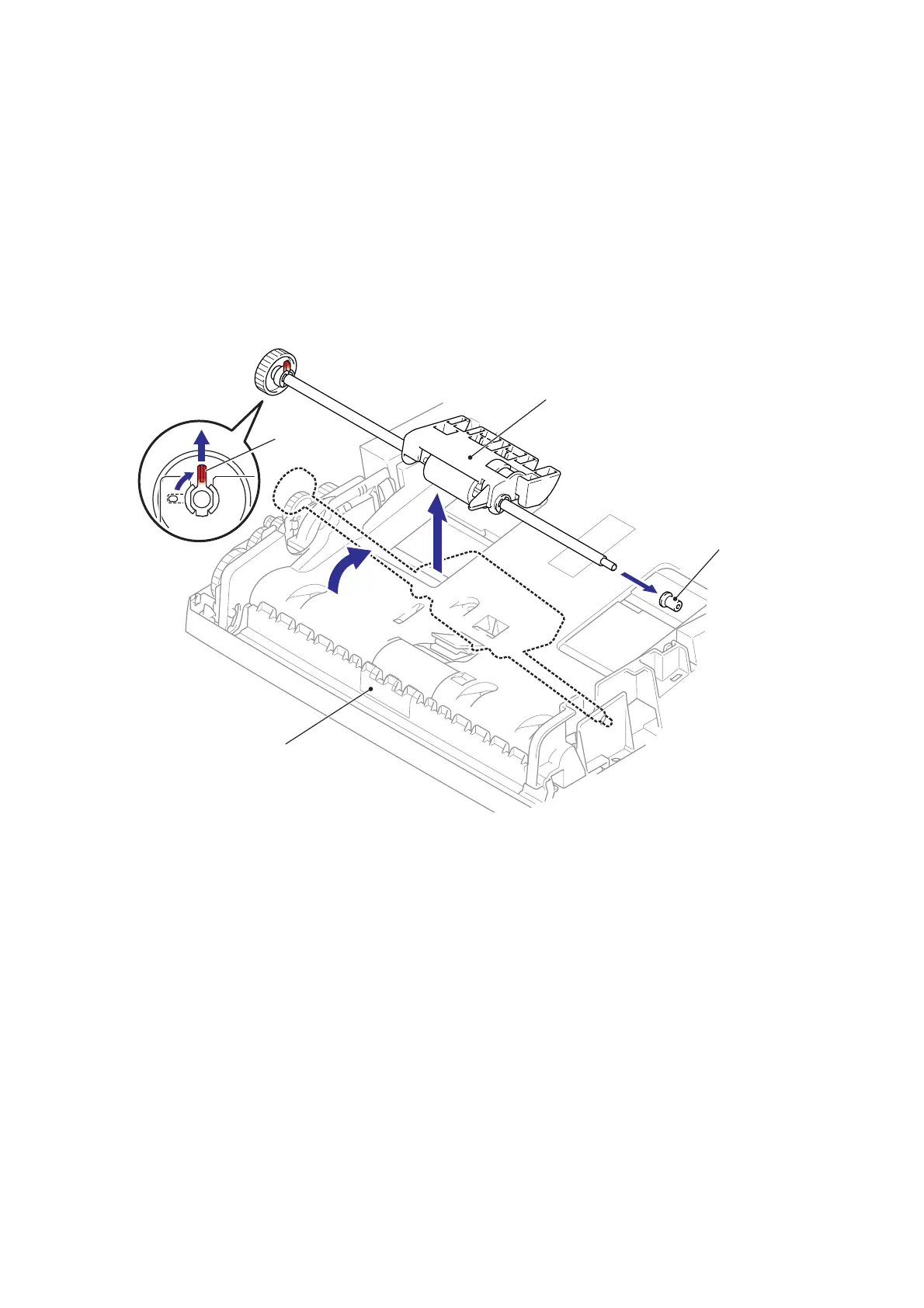

Fig. 3-32
Separator roller shaft ASSY
Rib
ADF unit
Separator roller bushing
1a
1b
1c
1d
2
1a
