3-17
Confidential

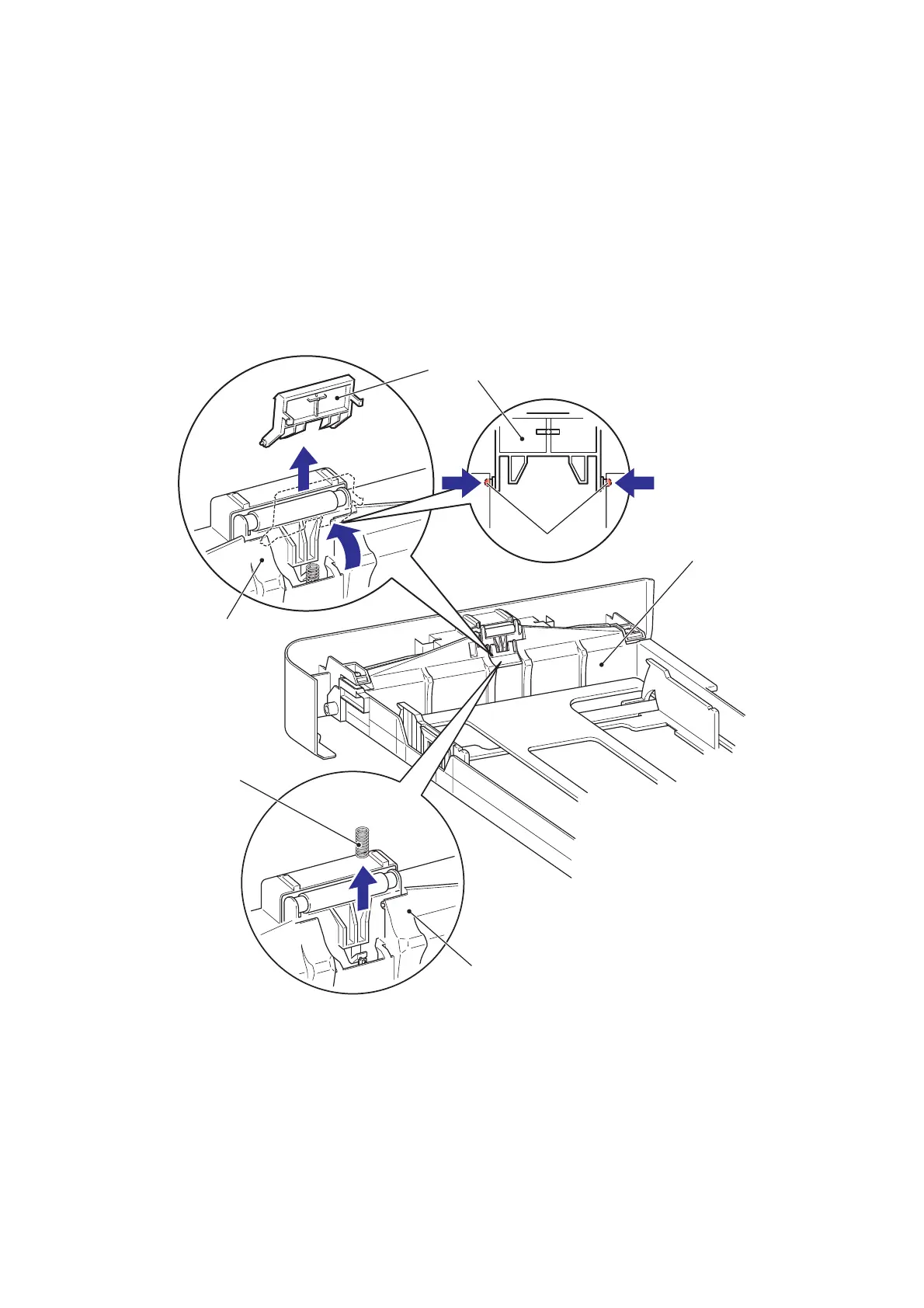

8.1 SEPARATION PAD ASSY
(1) Lift up the Separation pad ASSY.
(2) Release the Boss to remove the Separation pad ASSY from the Paper tray unit.
(3) Remove the Separation pad spring from the Paper tray unit.
Fig. 3-8
Separation pad ASSY
Paper tray ASSY
Paper tray ASSY
1
2b
2a 2a
Boss
Separation pad spring
Paper tray ASSY
3
