3-76
Confidential
8.29.2
COVER SENSOR HARNESS ASSY
(1) Disconnect the Connector from the Toner LED PCB ASSY.
(2) Release the Hook to remove the Cover sensor harness ASSY from the Main body.

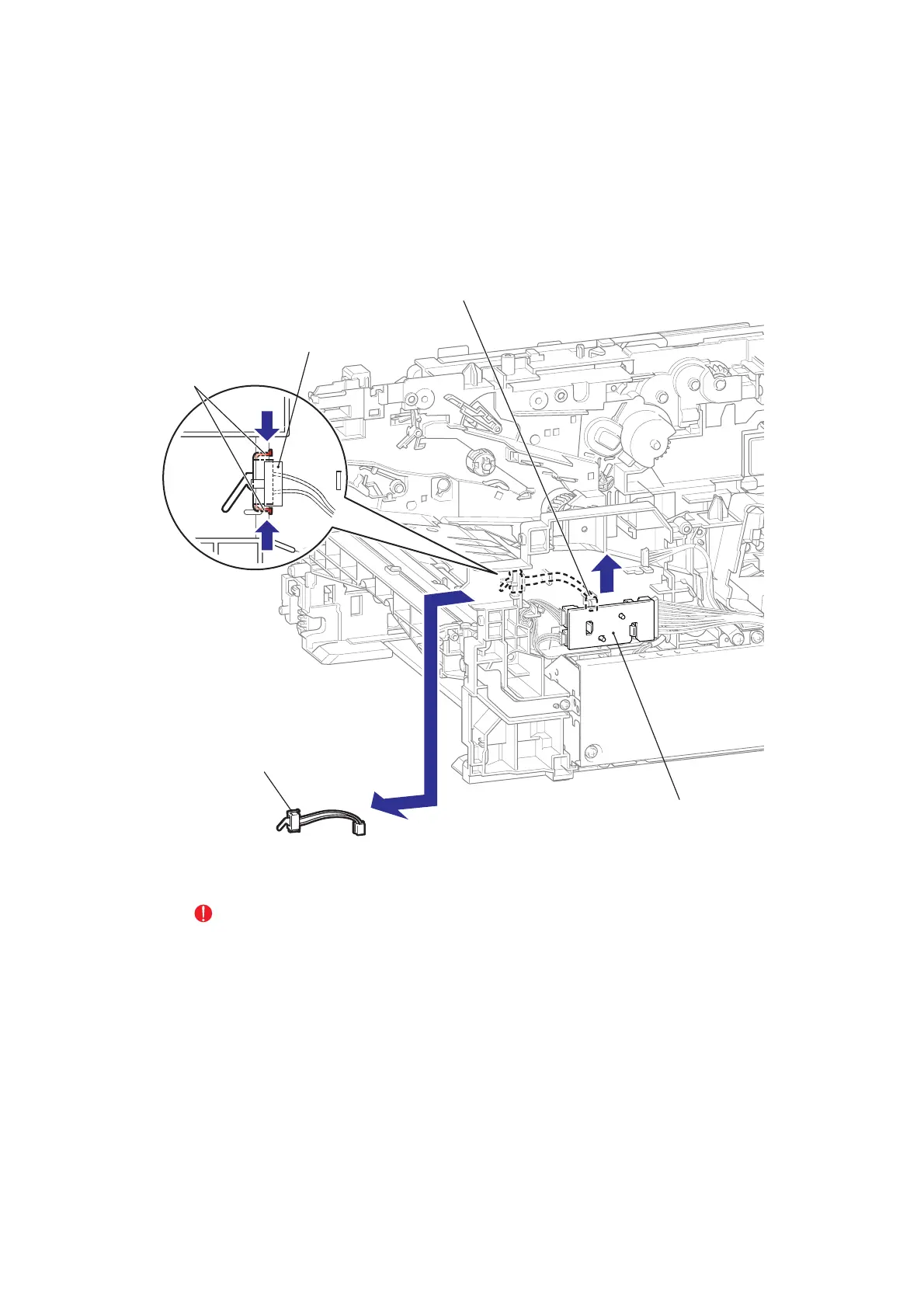

Fig. 3-77
CAUTION:
When removing the Cover sensor harness ASSY, remove it as shown in the direction of
the allow 2b. Be careful not to damage the Hook.
Hook
Connector
Toner LED PCB ASSY
Cover sensor harness ASSY
Cover sensor harness ASSY
2a
2a
1a
2b
<Right side>
