Brother MFC-7450

3-32
Confidential

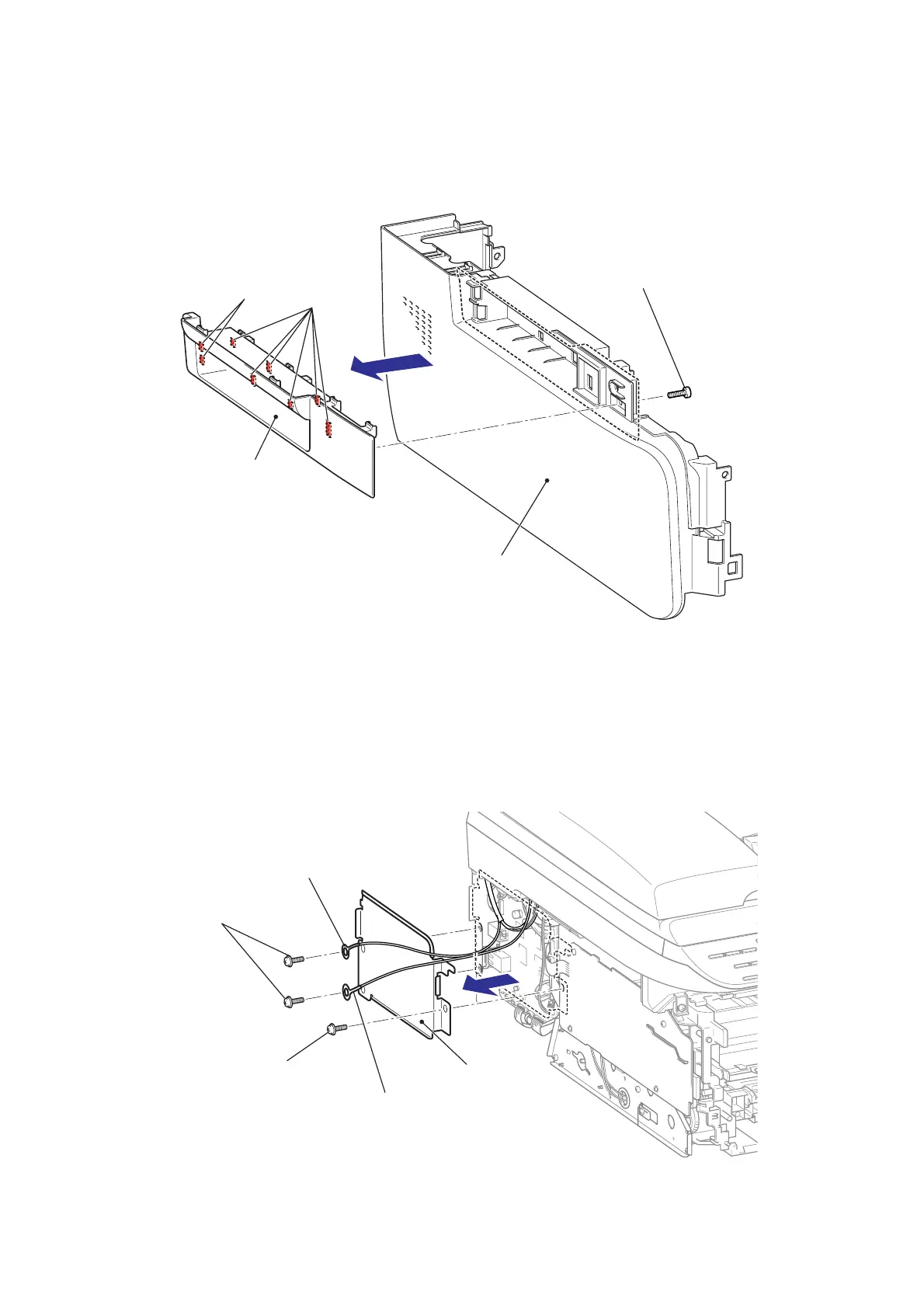

8.9.2 SIDE COVER SUB L
(1) Remove the Taptite bind B M4x12 screw.
(2) Release the Hook to remove the Side cover sub L from the Side cover L ASSY.
Fig. 3-25
8.10 MAIN SHIELD COVER PLATE
(1) Remove the two Taptite cup S M3x6 SR screws, and then remove the two FG harness
from the Main body.
(2) Remove the Taptite cup S M3x6 SR screw, and then remove the Main shield cover plate
from the Main body.
Fig. 3-26
Taptite bind B M4x12
Side cover sub L
Hook
Hook
Side cover L
Taptite cup S M3x6 SR
Taptite cup S M3x6 SR
FG harness (ADF)
FG harness (FB)
Main shield cover plate
