Brother MFC-7450

3-45
Confidential
8.11.11 DRIVE FRAME ASSY
(1) Remove the Taptite cup S M3x6 SR screw, and then remove the FG harness from the
Lower document chute ASSY.
(2) Remove the two Taptite cup B M3x10 screws, and then remove the Drive frame ASSY
from the Lower document chute ASSY.
(3) Remove the Harness holder from the Lower document chute ASSY.

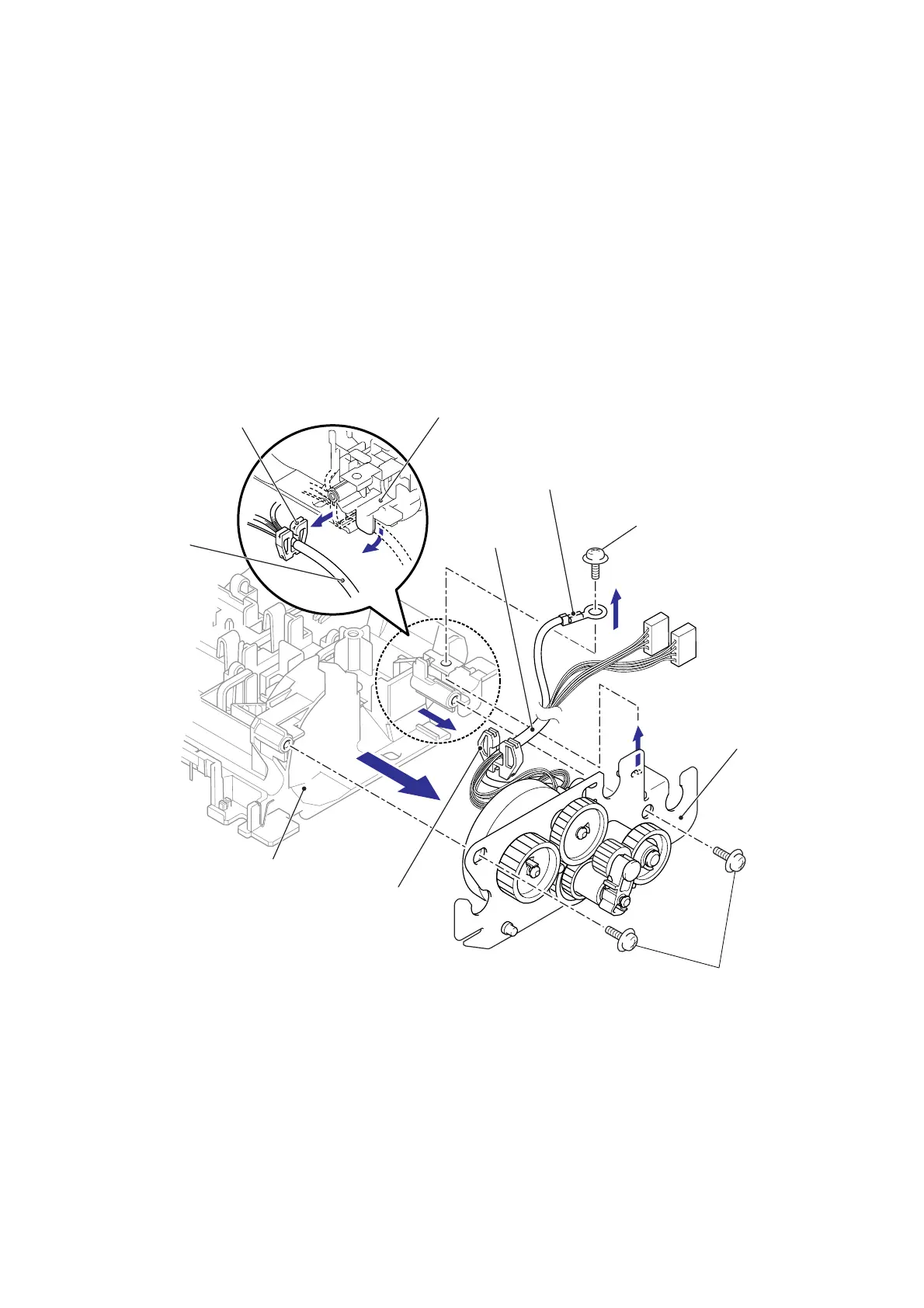

Fig. 3-40
Drive frame ASSY
Lower document chute ASSY
Lower document chute ASSY
FG harness
ADF harness unit
ADF harness unit
Taptite cup B M3x10
Harness holder
Taptite cup S M3x6 SR
Harness holder
1
2
3
3
3
