8.40 MAIN FRAME L ASSY
(1) Remove the three Taptite bind B M3x10 screws, and then remove the FU front paper
guide from the Main body.

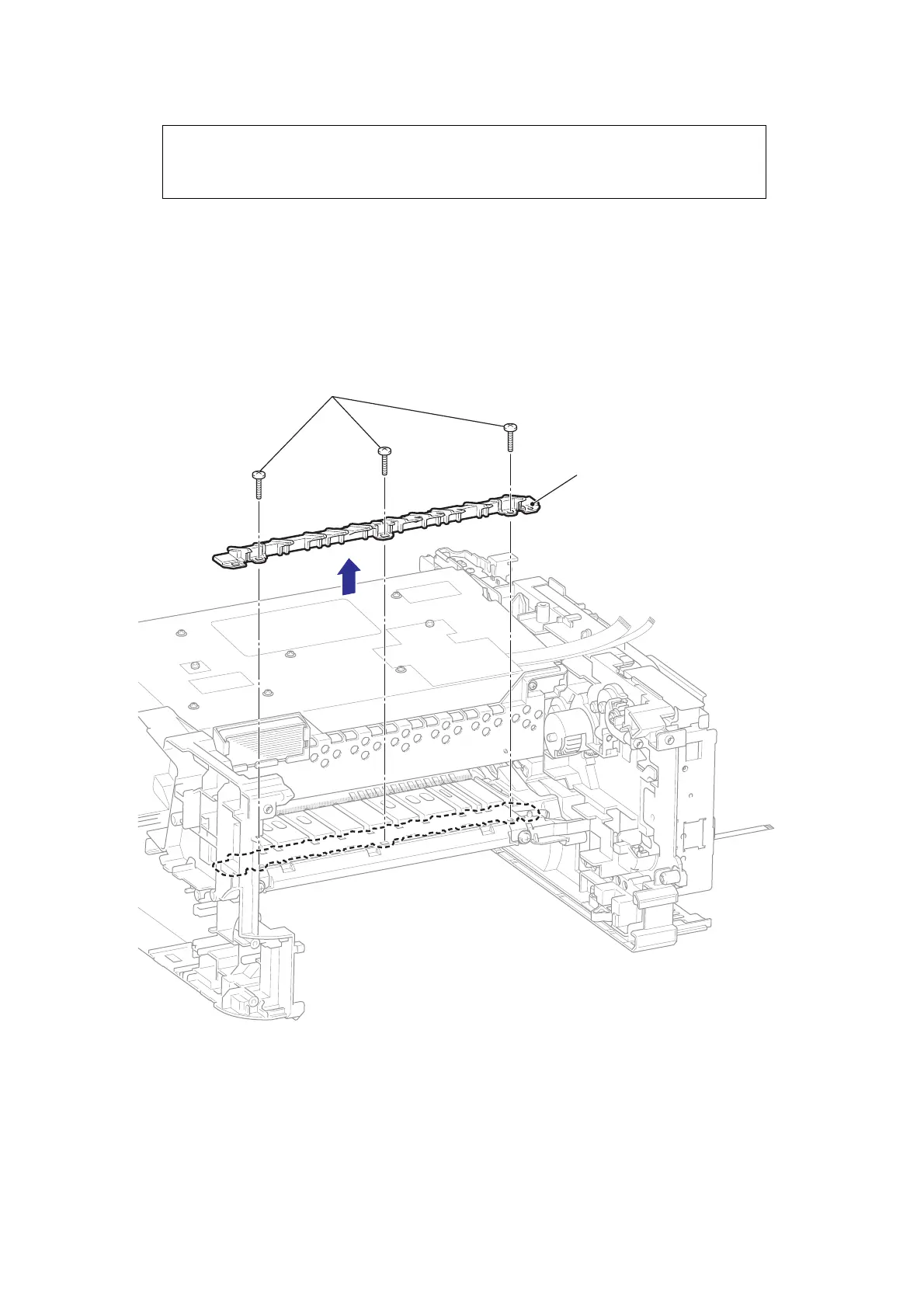

Fig. 3-105
Note:
The procedure for disassembling the Main frame L ASSY as mentioned after
"8.25 HIGH-VOLTAGE PS PCB ASSY" is described below.
Taptite bind B M3x10
FU front paper guide
<Back side>
