3-68
Confidential

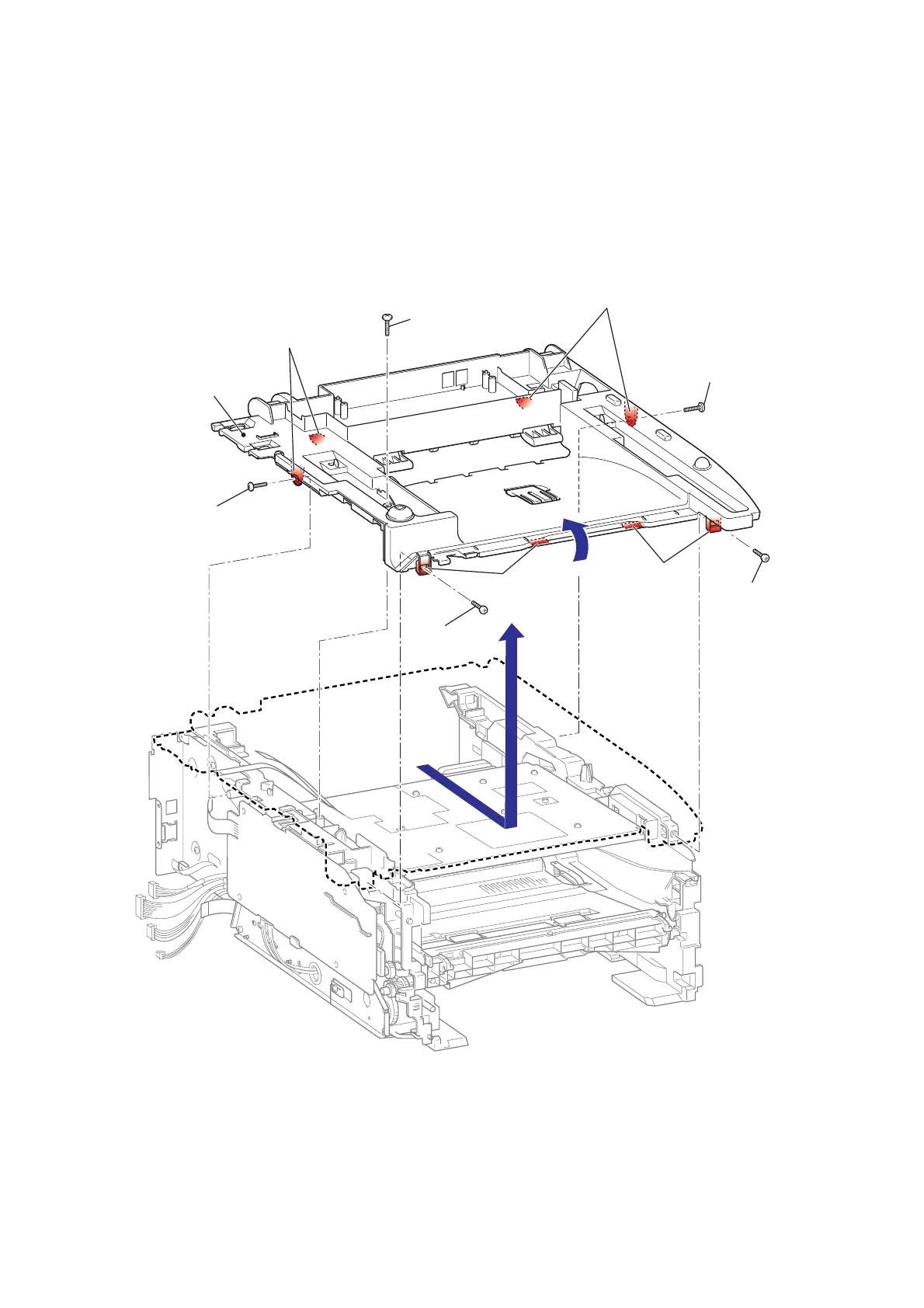

8.23 JOINT COVER ASSY / PAPER SUPPORTER
(1) Remove the five Taptite bind B M4x12 screws.
(2) Release the Hook to remove the Joint cover ASSY from the Main body.
Fig. 3-67
Taptite bind B
M4x12
Taptite bind B
M4x12
Taptite bind B
M4x12
Hook
Hook
Hook
Taptite bind B
M4x12
Taptite bind B
M4x12
Hook
Joint cover
2a
2b
<Front side>
