3-90
Confidential
8.34 DEV JOINT / DEV GEAR JOINT/53R / REGISTRATION PENDULUM GEAR SPRING
(1) Remove the DEV joint and the DEV joint spring from the DEV gear joint/53R.
(2) Remove the DEV gear joint/53R from the Drive sub ASSY.
(3) Remove the Registration pendulum gear spring from the Drive sub ASSY.

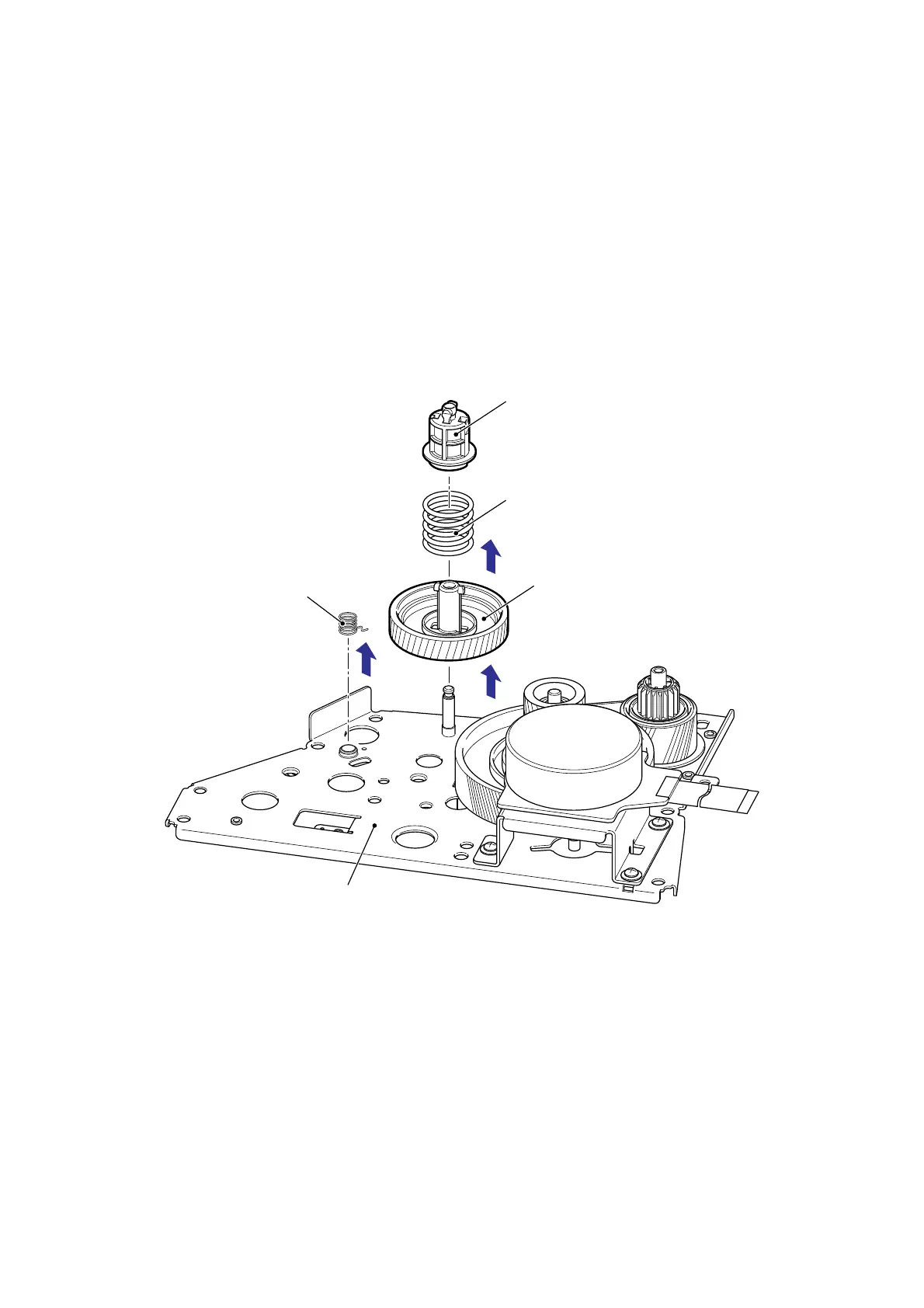

Fig. 3-94
DEV gear joint / 53R
Registration
pendulum gear spring
DEV joint spring
DEV joint
Drive sub ASSY
1
2
3
