(2) Remove the Taptite cup S M3x6 SR screw and the nine Taptite bind B M4x12 screws,
and then remove the Drive sub ASSY from the Main body.

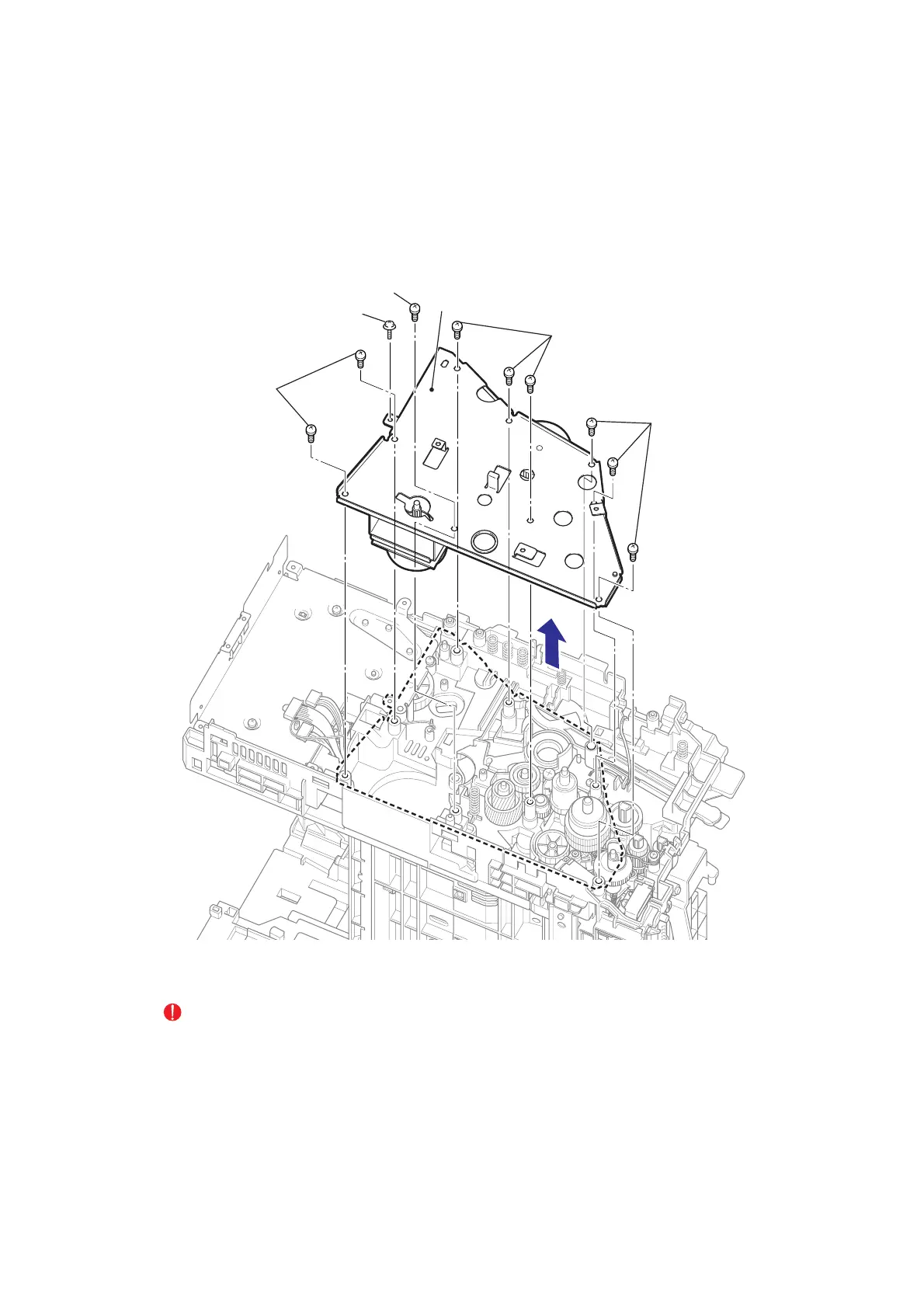

Fig. 3-93
CAUTION:
When removing the Drive sub ASSY, Ensure the left side of the Main body is at the top as
shown in the above figure because there is the risk of the gears falling off.
Taptite bind B M4x12
Taptite bind B M4x12
Taptite bind B M4x12
Taptite cup S M3x6 SR
Taptite bind B M4x12
Drive sub ASSY
<Left side>
