3-31
Confidential
8.9 SIDE COVER L ASSY / SIDE COVER SUB L
8.9.1
SIDE COVER L ASSY
(1) Remove the two Taptite bind B M4x12 screws.
(2) Release the Hook to remove Side cover L ASSY from the Main body.

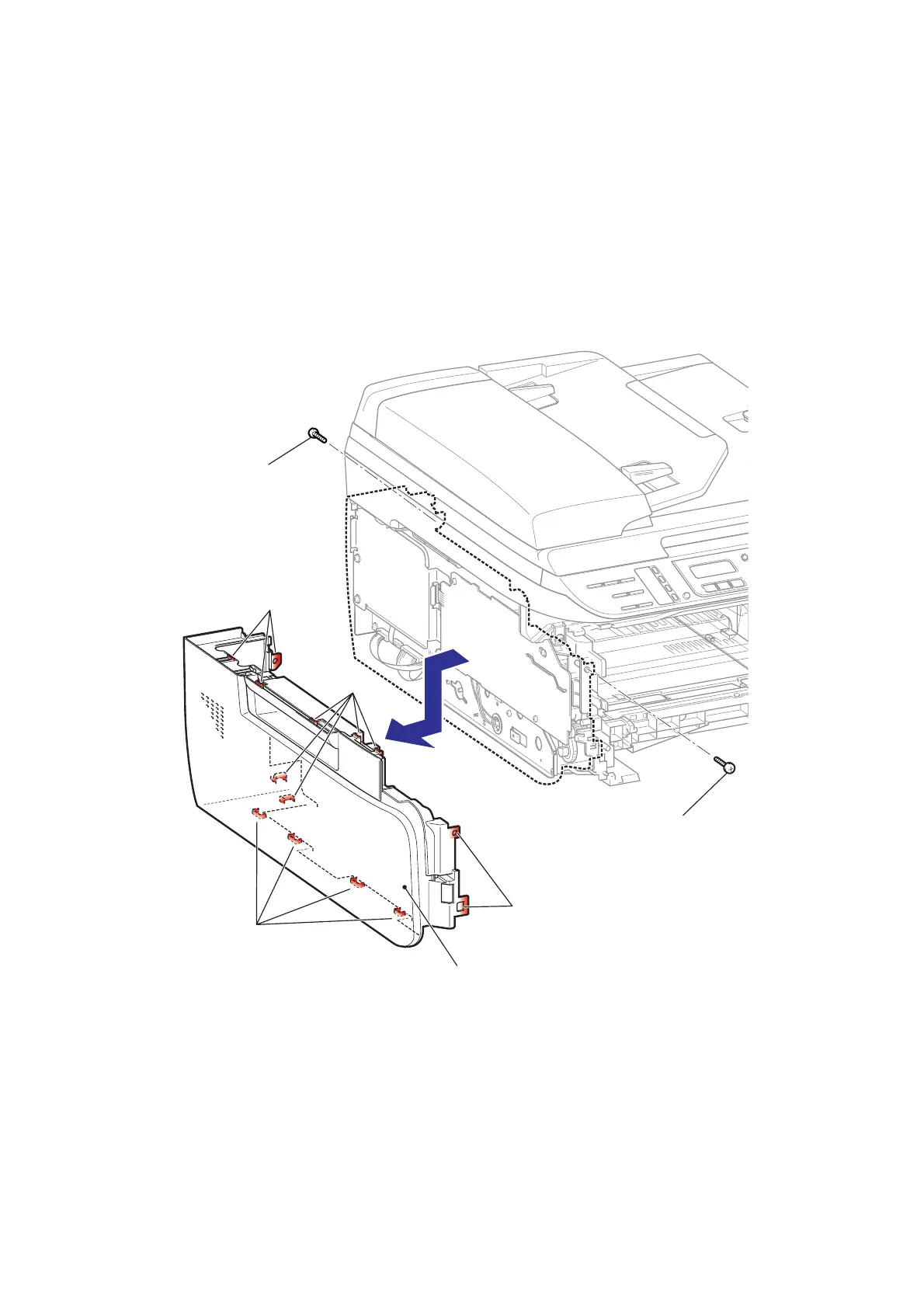

Fig. 3-24
Side cover L ASSY
Taptite bind B M4x12
Taptite bind B M4x12
Hook
Hook
Hook
Hook
