Brother MFC-7450

3-54
Confidential

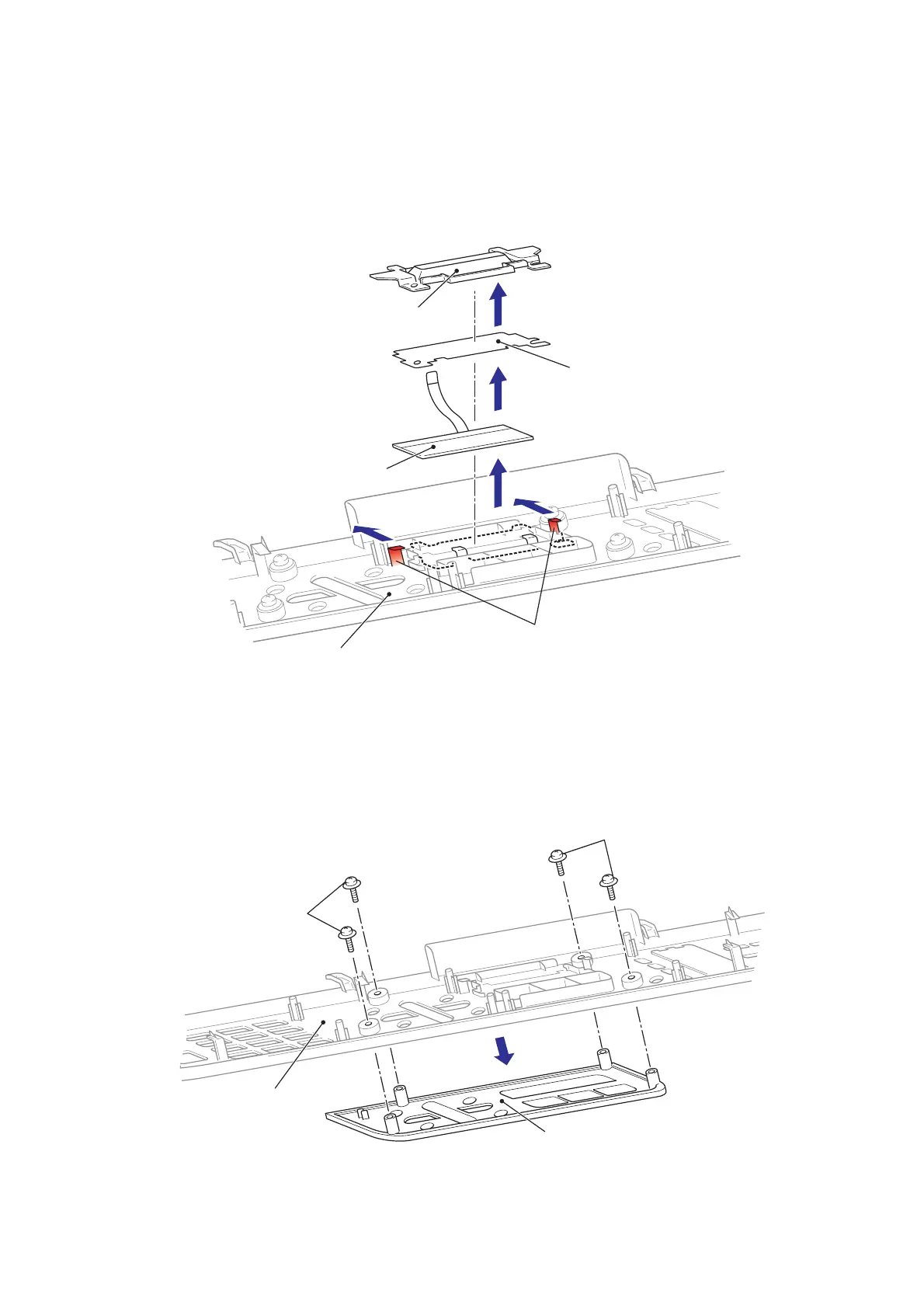

8.12.6 LCD
(1) Release the Hook to remove the Back light guide from the Panel unit.
(2) Remove the Diffusion film from the Panel unit.
(3) Remove the LCD from the Panel unit.
Fig. 3-51
8.12.7 PANEL DRESS COVER
(1) Remove the four Taptite cup B M3x8 screws, and then remove the Panel dress cover
from the Panel unit.
Fig. 3-52
Diffusion film
Hook
Back light guide
Panel unit
LCD
1a
1a
3
2
1b
Panel dress cover
Panel unit
Taptite cup B M3x8
Taptite cup B M3x8
