3-22
Confidential
8.3.2
OUTER CHUTE ASSY

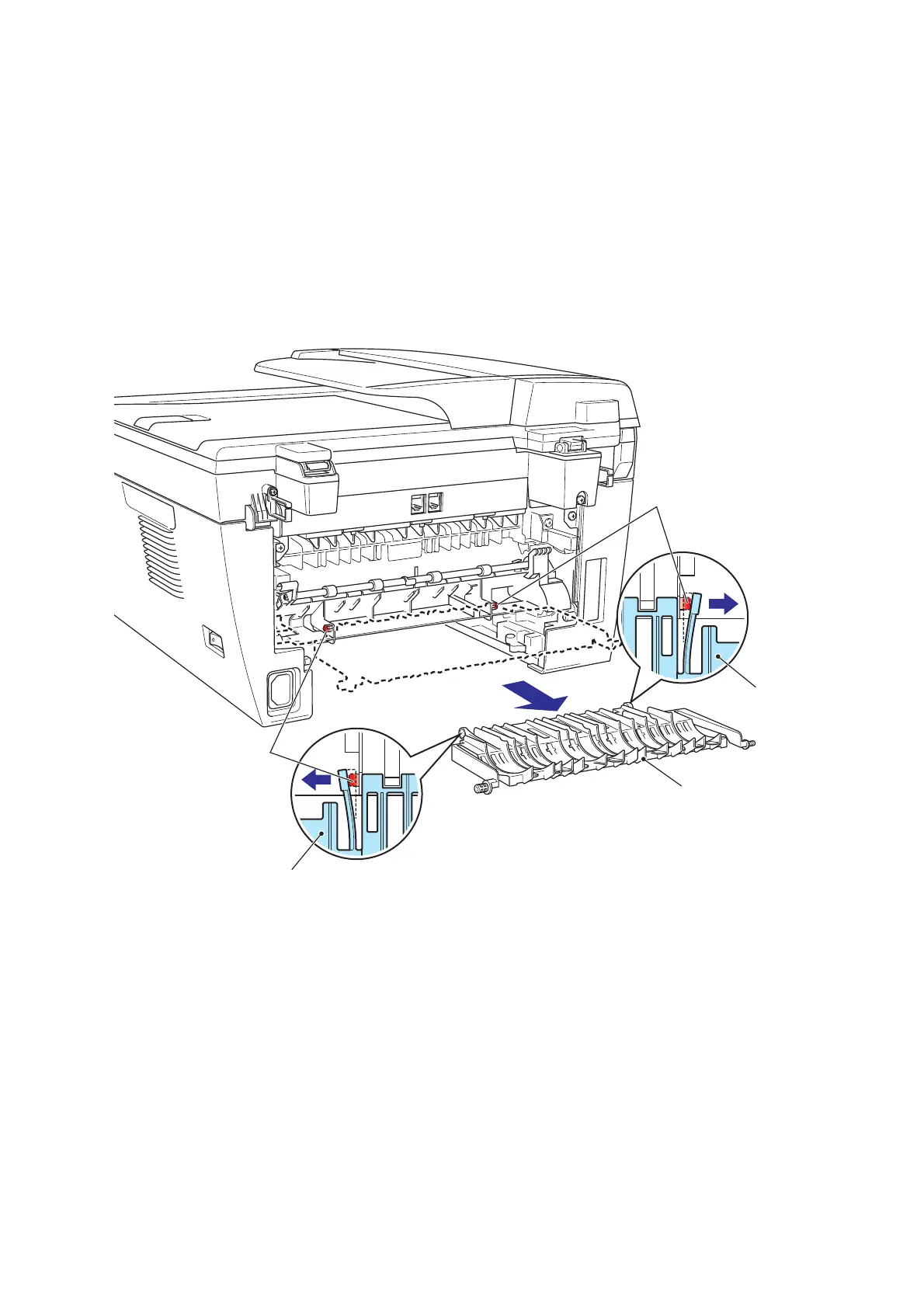

(1) Release the Boss to remove the Outer chute ASSY from the Main body.
Fig. 3-13
Boss (Fuser cover ASSY)
Boss (Fuser cover ASSY)
Outer chute ASSY
Outer chute ASSY
Outer chute ASSY
1a
1a1a
1b
