Brother MFC-7450

3-35
Confidential
8.11.2 HINGE R / HINGE ARM / HINGE ASSY L
(1) Remove the Hinge R from the Hinge arm.
(2) Remove the Taptite bind B M4x12 screw, and then remove the Hinge arm from the ADF
unit.
(3) Remove the two Taptite cup B M3x10 screws and the Taptite cup S M3x12 screw, and
then remove the Hinge ASSY L from the ADF unit.

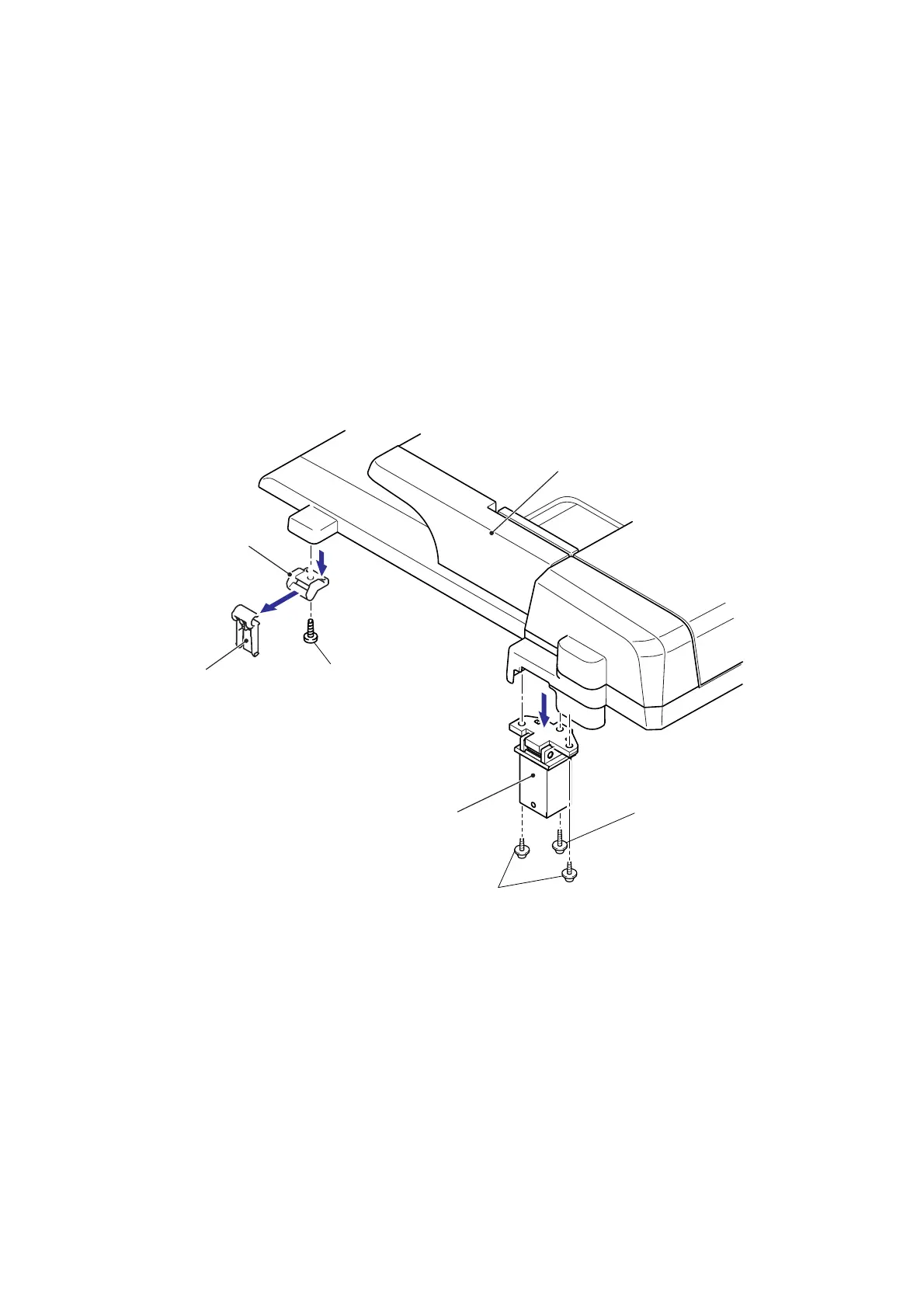

Fig. 3-29
Hinge ASSY L
Hinge arm
Hinge R
ADF unit
Taptite bind B M4x12
Taptite cup B M3x10
Taptite cup S M3x12
1
2
3
