Brother MFC-7450

3-78
Confidential
8.30 LVPS
8.30.1 LVPS PCB UNIT

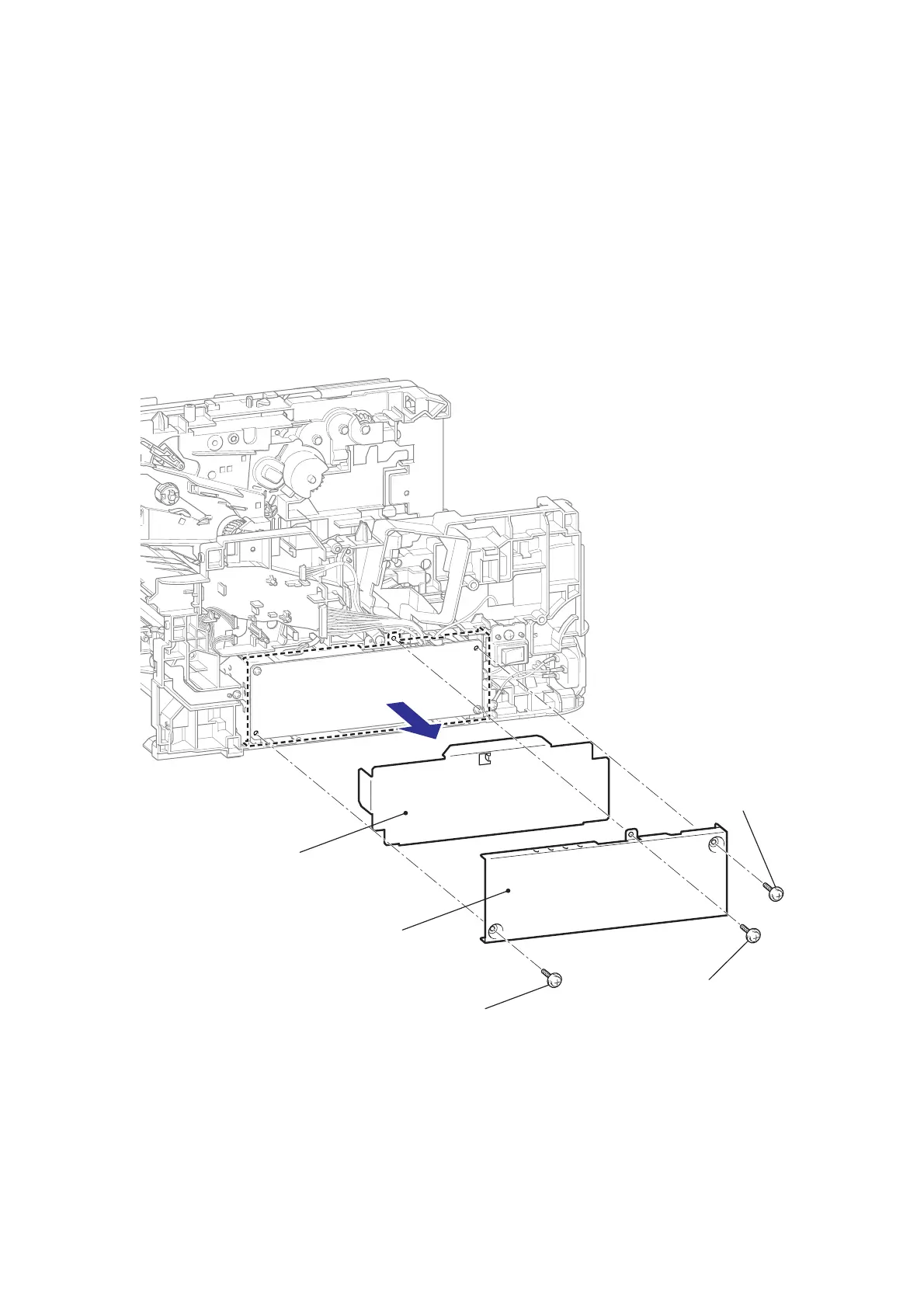

(1) Remove the Taptite pan (S/P washer) M3.5x6 screw and the two Taptite cup S M3x6 SR
screws, and then remove the LV shield plate cover and the LV insulation sheet from the
LV Shield plate 2.
Fig. 3-80
Taptite cup S M3x6 SR
Taptite cup S
M3x6 SR
Taptite pan (S/P washer)
M3.5x6
LV shield plate cover
LV insulation sheet
<Right side>
