Brother MFC-7450

3-79
Confidential
(2) Remove the Taptite bind B M4x12 screw, and then remove the SW holder from the Main
body.
(3) Remove the Taptite pan (S/P washer) M3.5x6 screw, and then remove the FG harness
ASSY of the Inlet harness ASSY from the LV shield plate 2.
(4) Remove the two Taptite flat B M3x10 screws, and then remove the Inlet harness ASSY
from the Main body.
(5) Remove the two Taptite cup S M3x6 SR screws, and then remove the LVPS PCB unit
from the LV shield plate 2.
(6) Remove the two Edge holder 3 from the LV shield plate 2.
(7) Disconnect the Connector from the LVPS PCB unit.

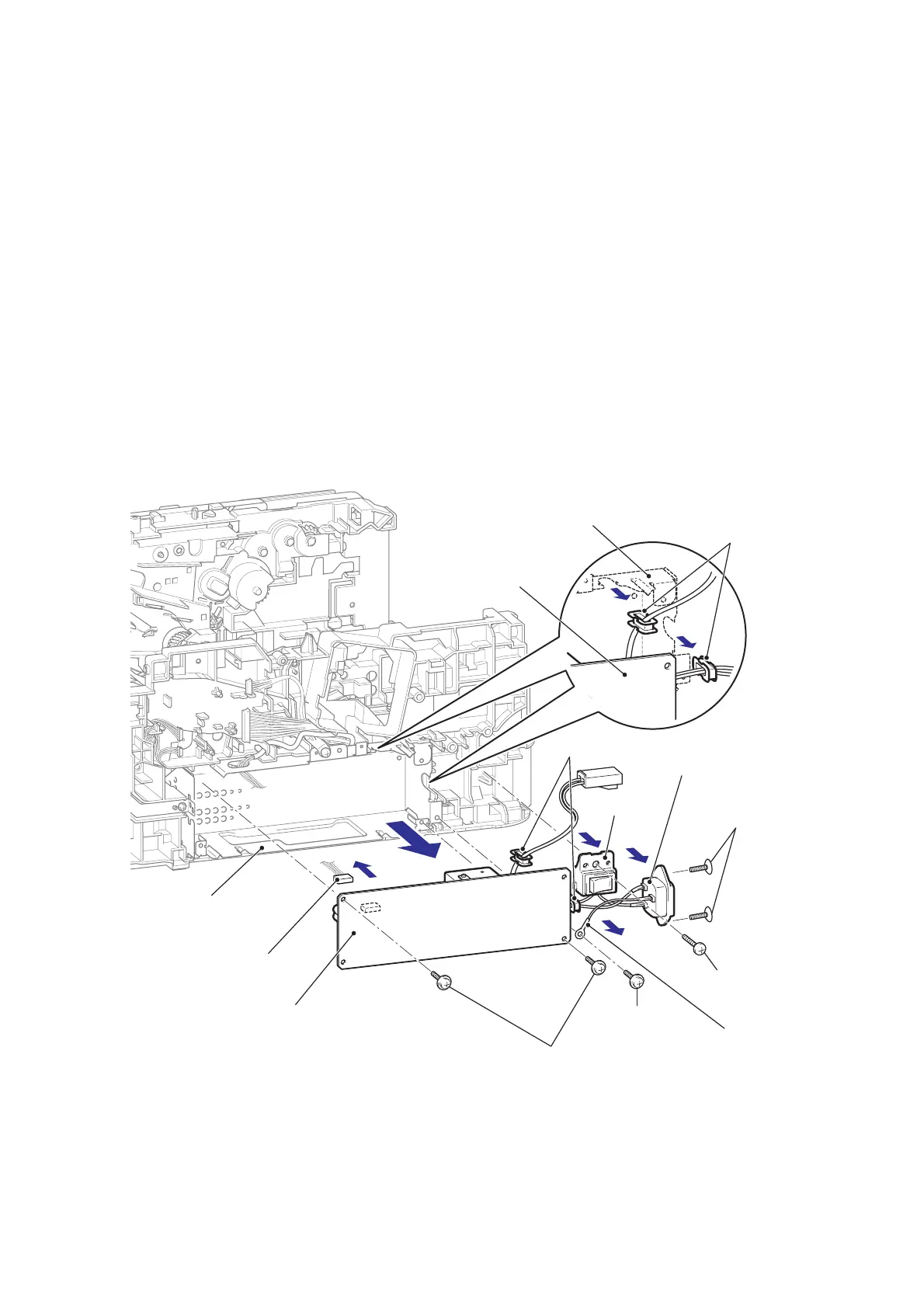

Fig. 3-81
Taptite pan
(S/P washer)
M3.5x6
Taptite bind B
M4x12
Taptite flat B M3x10
Inlet harness ASSY
(FG harness ASSY)
Inlet harness ASSY
LV shield plate 2
SW holder
LVPS PCB unit
Edge holder 3
Taptite cup S M3x6 SR
Connector
7
5
2
4
3
<Right side>
LV shield plate 2
Edge holder 3
LVPS PCB unit
6
6
6
