Brother MFC-7450

3-43
Confidential
8.11.9 LF ROLLER ASSY
(1) Release the Hook to remove the LF roller bushing from the Lower document chute
ASSY.
(2) Remove the LF roller ASSY from the Lower document chute ASSY.

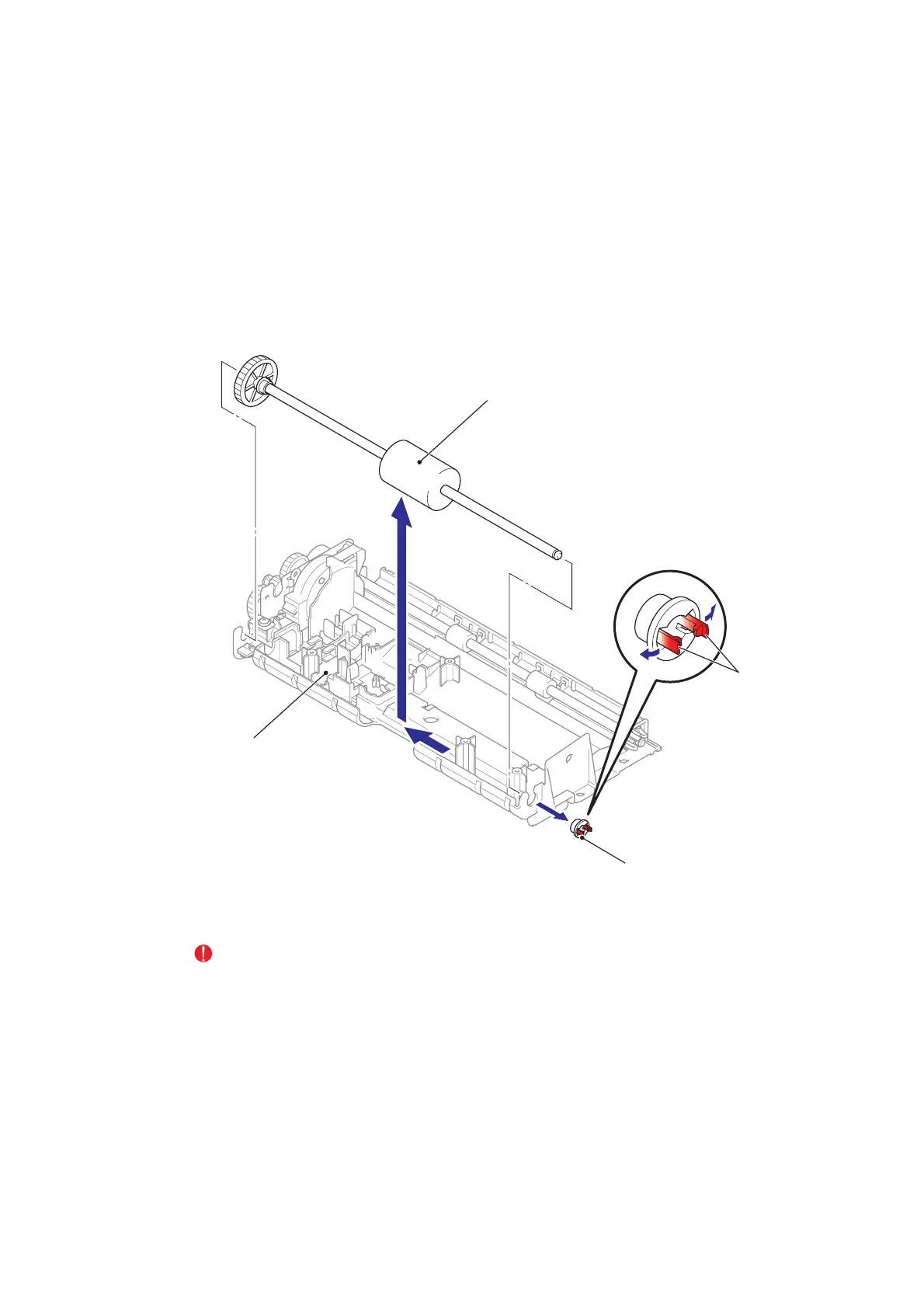

Fig. 3-38
CAUTION:
Be careful not to get grease on the roller.
LF roller ASSY
LF roller bushing
Lower document chute ASSY
Hook
1a
1a
1b
2a
2b
