Brother MFC-7450

3-42
Confidential
(5) Release the Hook to remove the ADF sensor PCB ASSY from the Lower document
chute ASSY.
(6) Disconnect the Connector from the ADF sensor PCB ASSY.

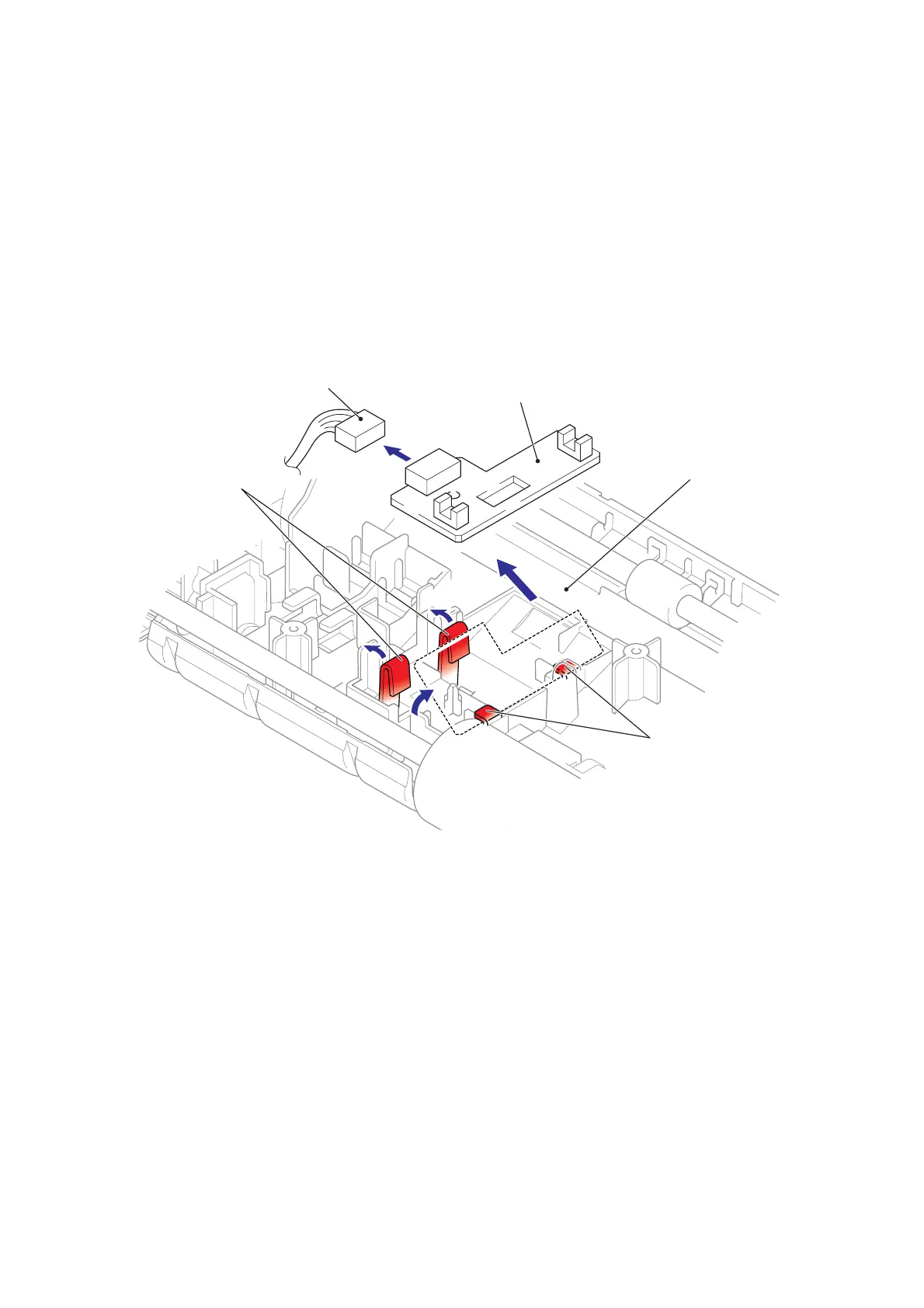

Fig. 3-37
Connector
ADF sensor PCB ASSY
Lower document chute ASSY
Hook
Hook
6
5c
5a
5a
5b
6
5c
5a
5a
5b
