8.4.2 EJECT ACTUATOR / EJECT ACTUATOR SPRING
(1) Release the Hook to slide the Eject actuator, and then remove the Eject actuator from
the Fuser cover ASSY.
(2) Remove the Eject actuator spring from the Eject actuator.

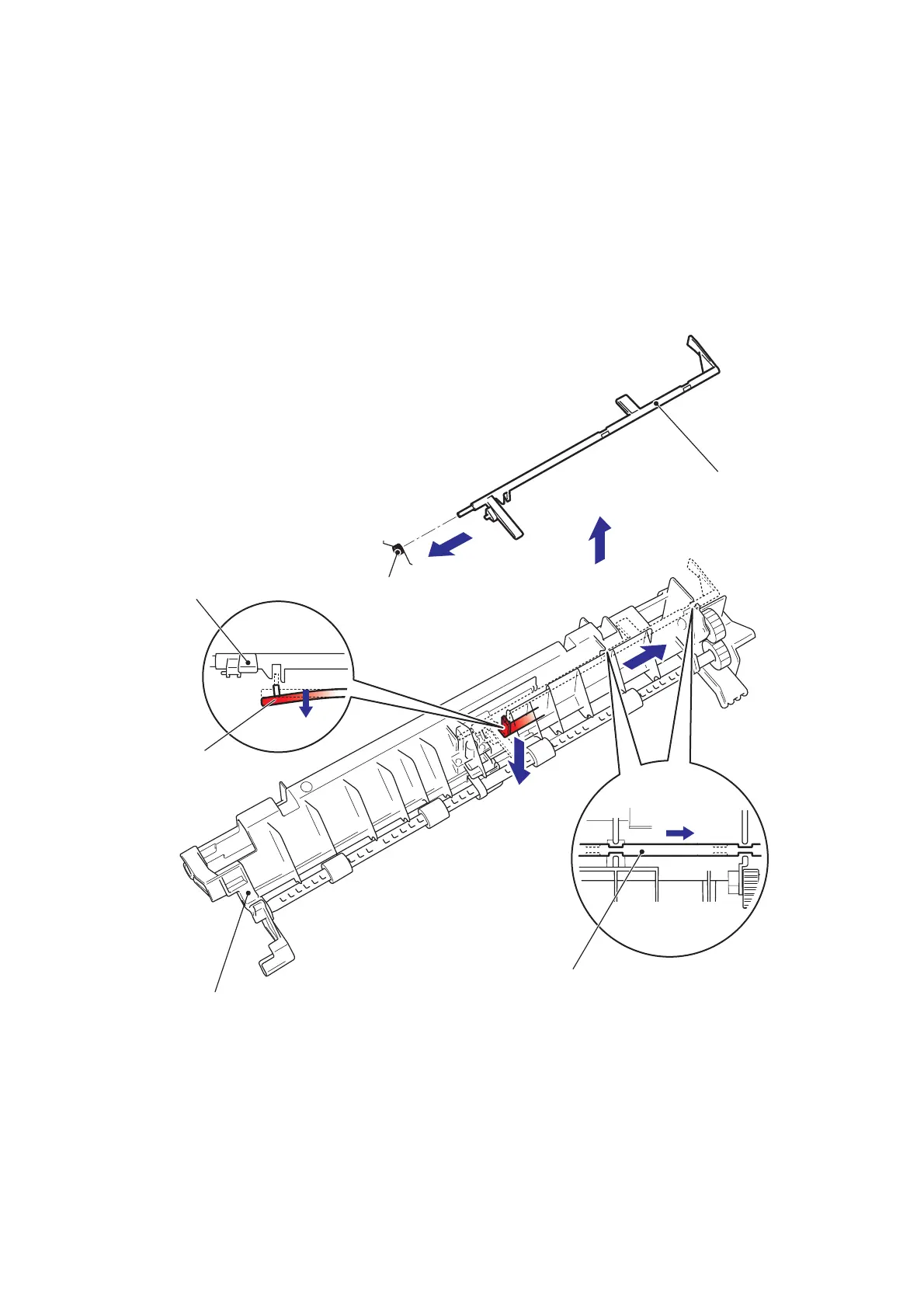

Fig. 3-15
1a
1b
1c
2
Eject actuator
Eject actuator
Eject actuator
Fuser cover ASSY
Hook
Eject actuator spring
1a
1a1a
1b
1b
