(2) Open the ADF unit.
(3) Remove the Taptite bind B M4x12 screw from the Hinge ASSY L.
(4) Release the Hook of the Hinge R to remove the ADF unit from the Main body.

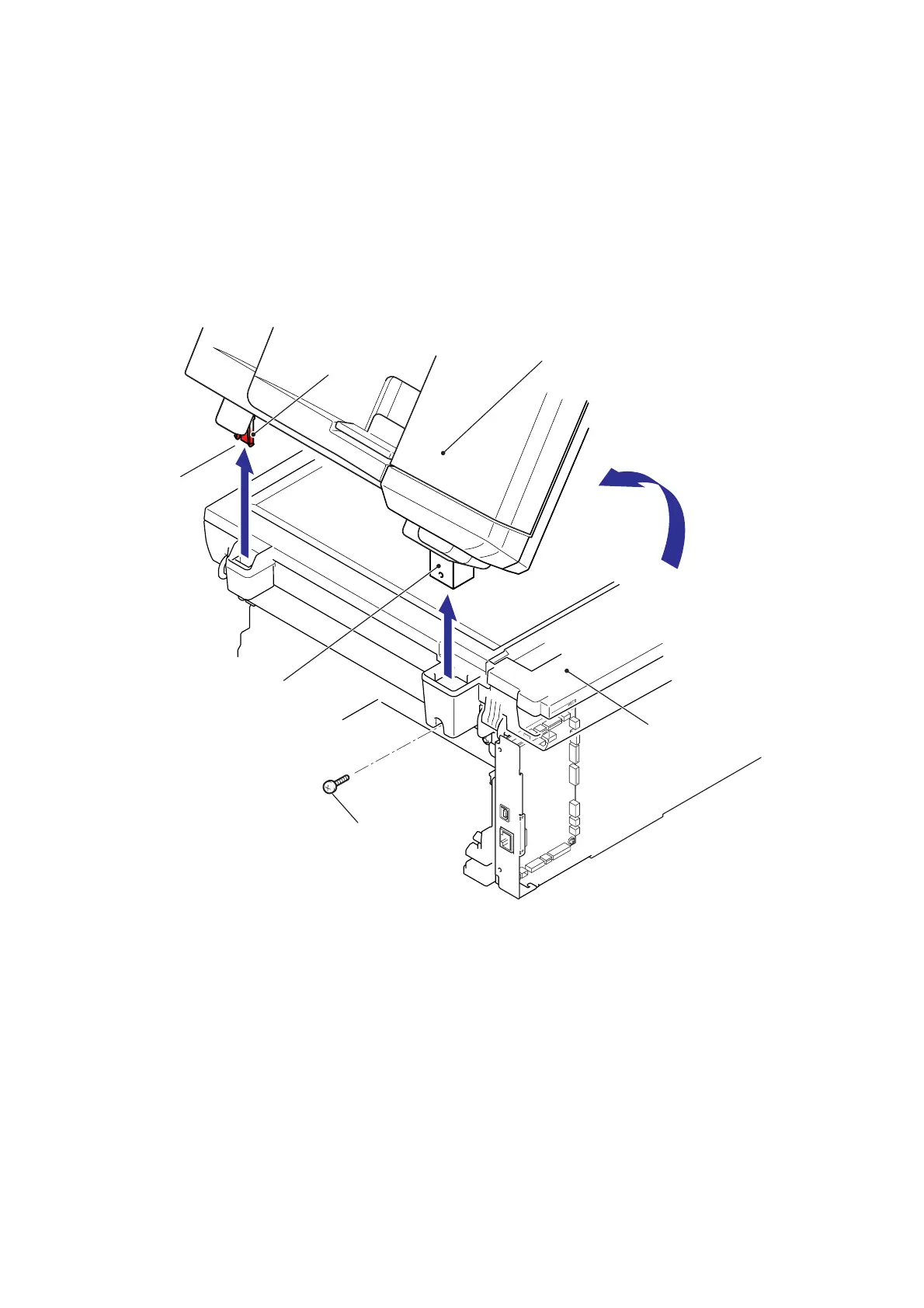

Fig. 3-28
Scanner unit
Hook
Hinge ASSY L
Hinge R
ADF unit
2
4
4
Taptite bind B M4x12
