Brother MFC-7450 Service Manual

3-65
Confidential

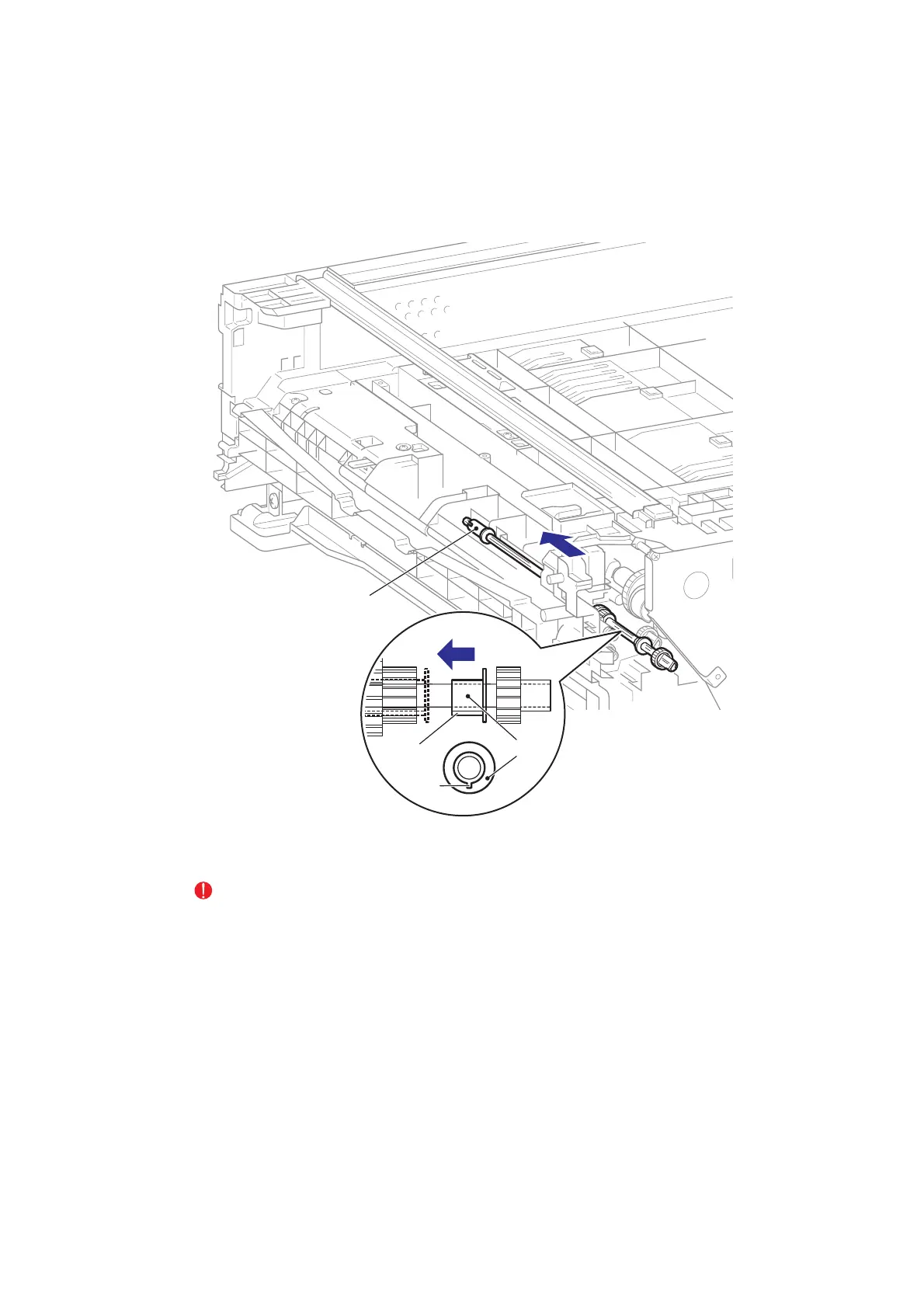

Assembling Note:
When assembling the Roller holder ASSY to the Main body, note the assembling method
referring to the figure below.
Fig. 3-64
CAUTION:
When the Separation R shaft bush does not slide across correctly, place the Rib of the
Bush 6 while aligning with the Groove of the Main body shaft hole from the Main frame L
ASSY side.
Groove
Rib
Bush 6
Separation R shaft bush
b
a
b
<Bottom side>
