3-19
Confidential

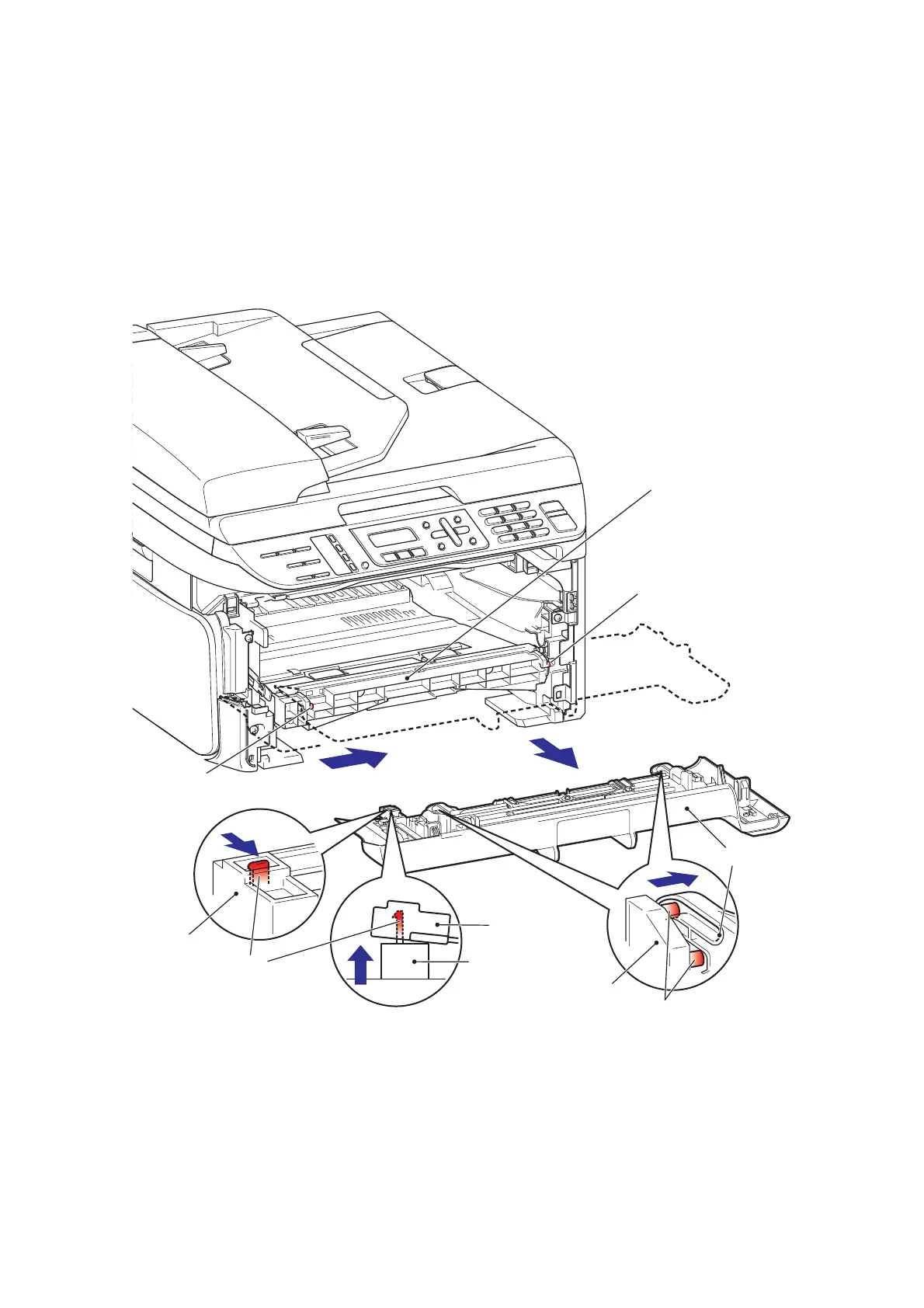

(3) Release the Hook of the Front cover ASSY from the Front cover top.
(4) Remove the Boss of the Front chute ASSY, and then remove the Front cover ASSY from
the Main body.
Fig. 3-10
3a
3b
4a
Boss
(Front chute ASSY)
Front cover top
Hook
Front cover ASSY
Front cover top
Front cover ASSY
Front chute ASSY
Boss
Front chute ASSY
Boss
(Front chute ASSY)
4a
4b
