Brother MFC-7450

3-51
Confidential

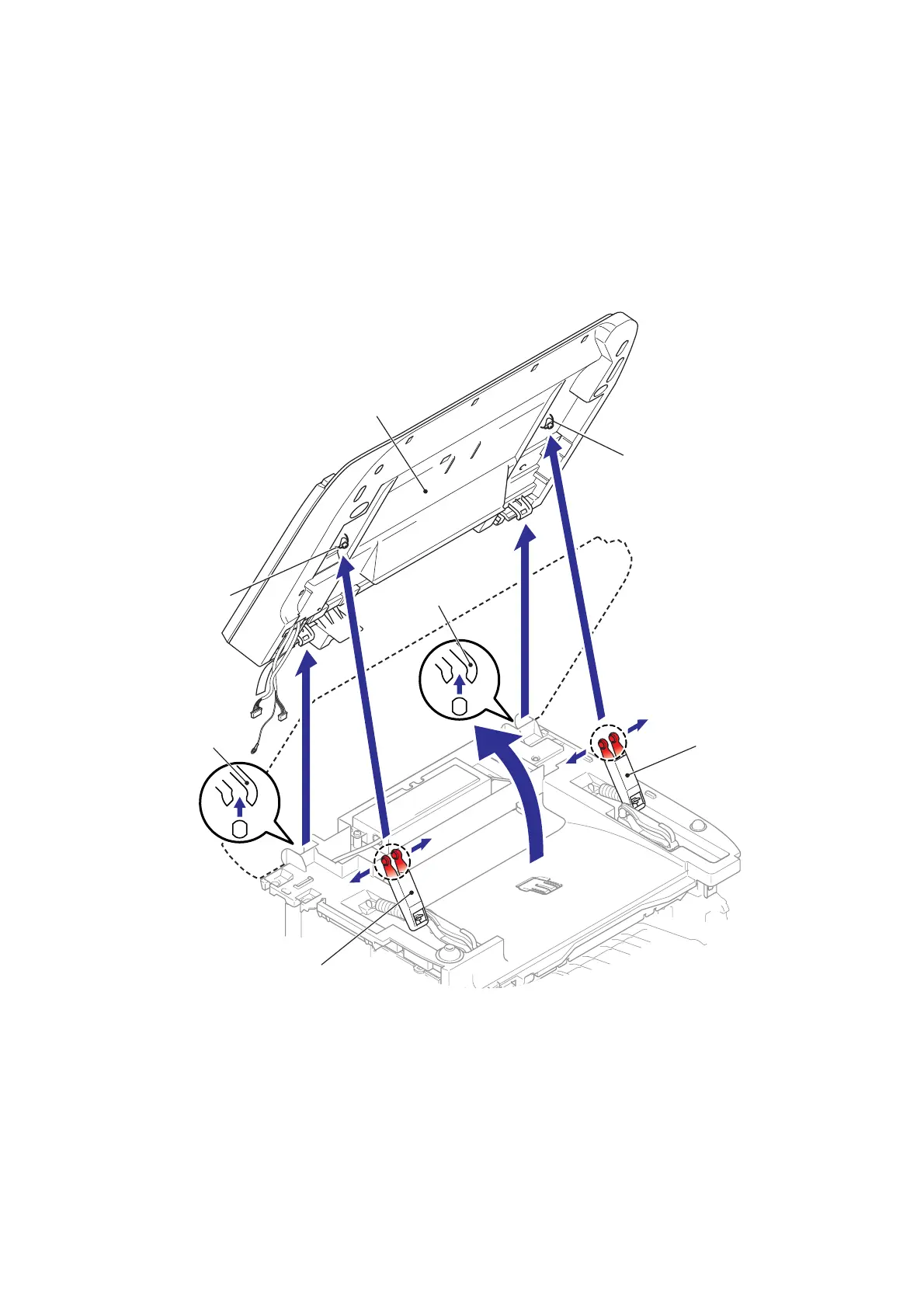

(2) Open the Document scanner unit.
(3) Remove the Pull arm L and the Pull arm R from the Boss of the Document scanner unit.
(4) Remove the Document scanner unit from the Main body.
Fig. 3-46
2
3a
3b
3b
3a
3a
3a
4b
4b
Document scanner unit
Scanner unit
Document
scanner unit
Pull arm R
Pull arm L
Boss
Boss
4a
4a
3a
3a
3a
3a
