Brother MFC-7450

3-87
Confidential

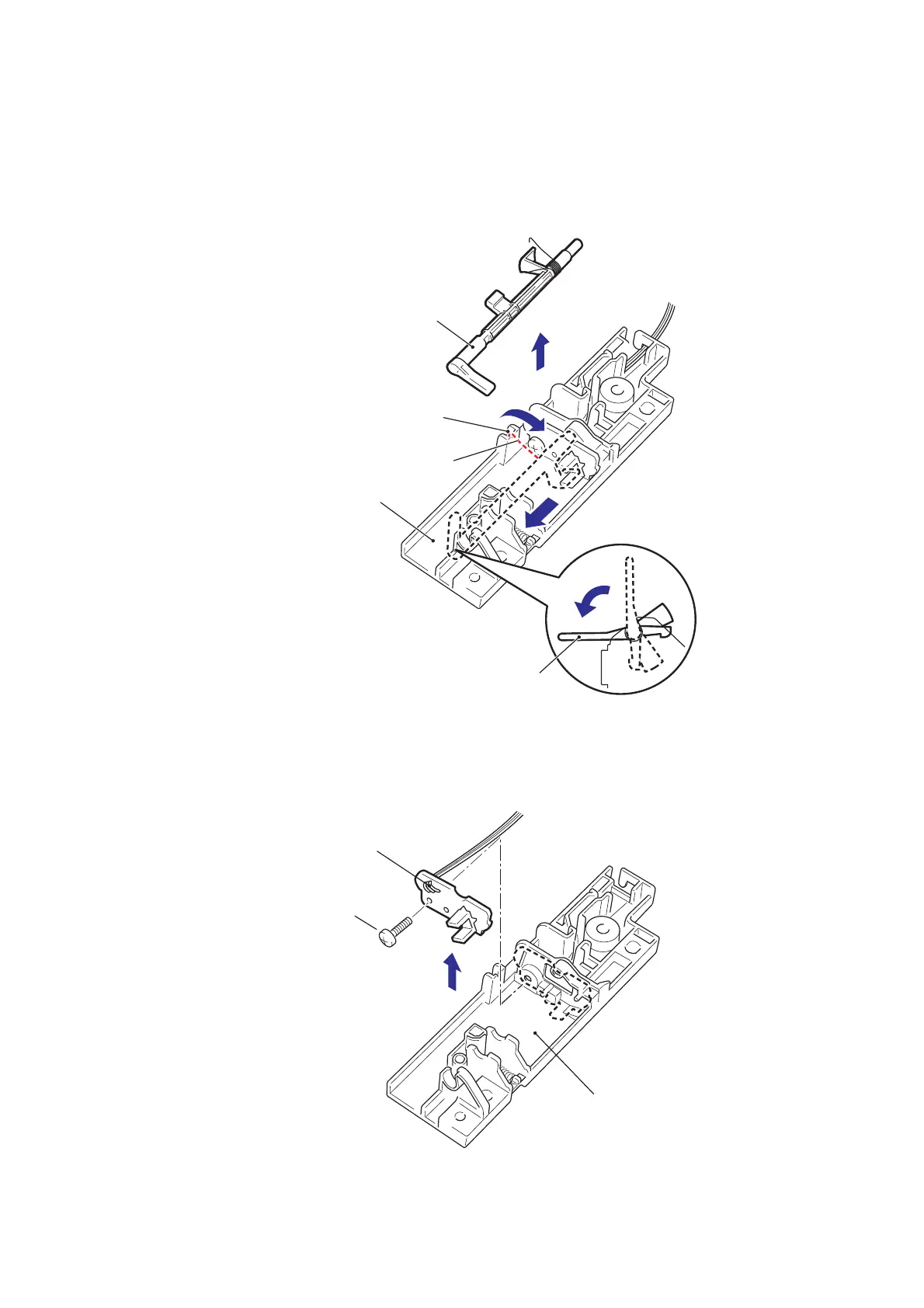

(3) Remove the Actuator spring rear from the Hook part.
(4) Turn the Registration actuator rear.
(5) Slide the Registration actuator rear to remove the Registration actuator rear from the
Rear actuator holder ASSY.
Fig. 3-90
(6) Remove the Taptite bind B M3x10 screw, and then remove the Registration rear sensor
PCB ASSY from the Rear actuator holder ASSY.
Fig. 3-91
5b
5a
4
5a
Rear actuator holder ASSY
Actuator spring rear
Registration actuator rear
Registration actuator rear
Hook part
3
Taptite bind B M3x10
Rear actuator holder ASSY
Registration rear sensor PCB ASSY
