(5) Remove the four Taptite bind B M4x12 screws and the two Taptite cup S M3x6 SR
screws, and then remove the Main frame L ASSY from the Main body.
Memo :
• Ensure you remove the Main frame L ASSY with the DEV joint link pulled out (as shown).

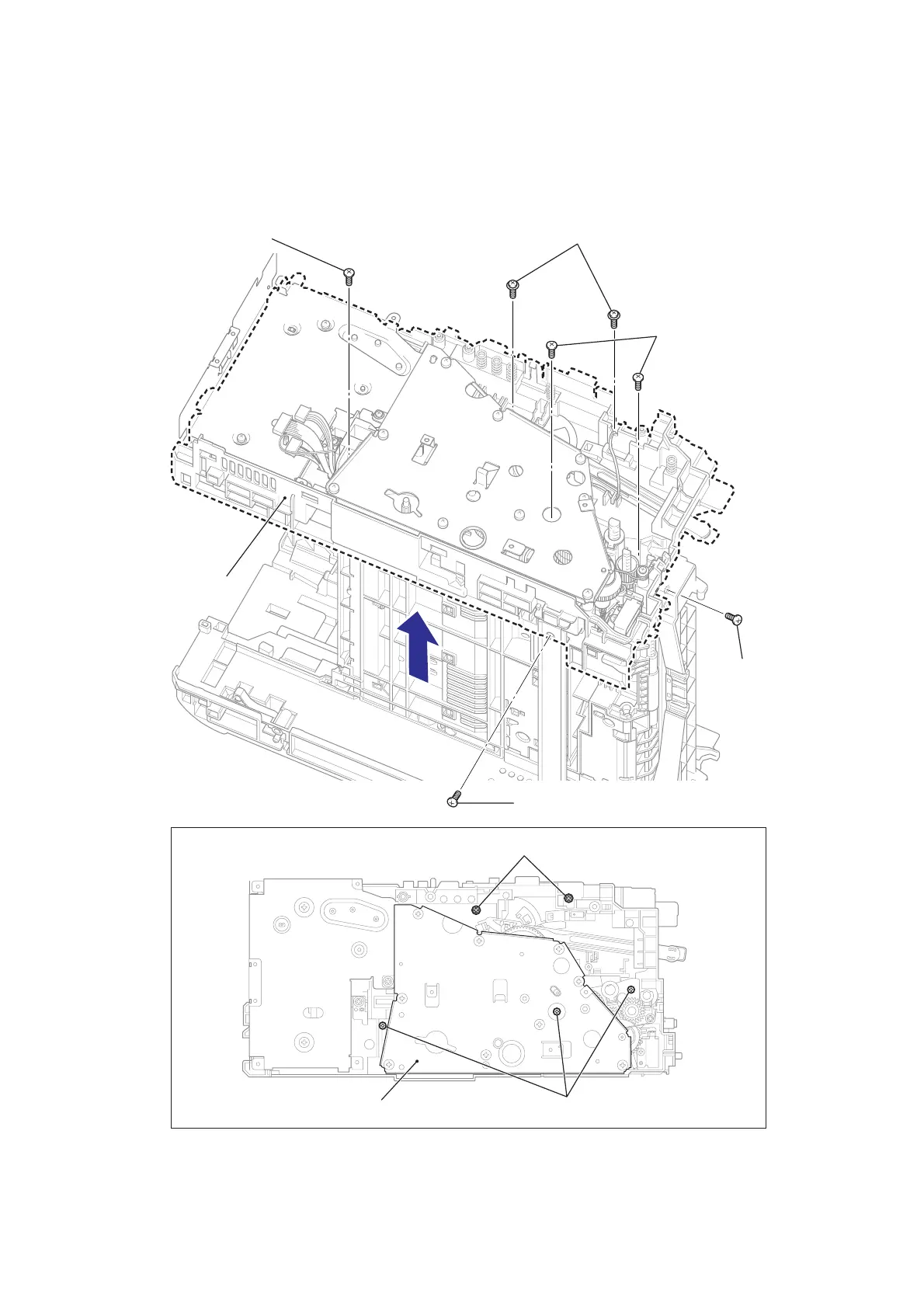

Fig. 3-109
Taptite bind B M4x12
Taptite cup S M3x6 SR
<Upper surface of Main frame L ASSY>
Drive sub ASSY
Main frame L
ASSY
Taptite bind B M4x12
Taptite bind B M4x12
Taptite cup S M3x6 SR
Taptite bind
B M4x12
Taptite bind B M4x12
<Left side>
