Brother MFC-7450

5-17
Confidential

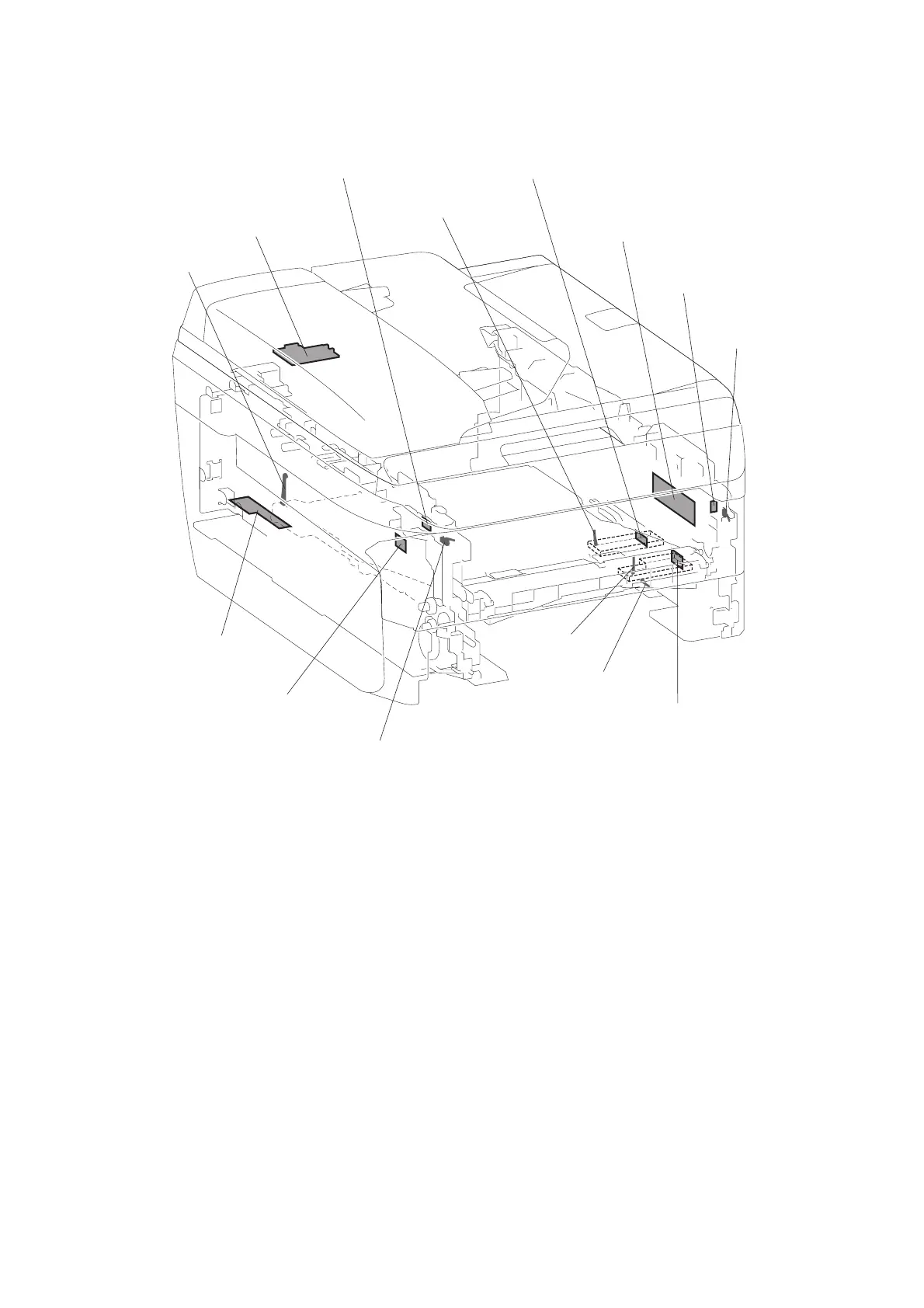

■ Location of sensors
Fig. 5-7
Cover sensor
Cover sensor
harness ASSY
Toner sensor
(Toner LED PCB ASSY)
Paper eject sensor
(Eject sensor PCB ASSY)
New toner sensor
New toner sensor harness ASSY
Eject actuator
Registration front sensor
/Tail edge sensor
(Registration front sensor PCB ASSY)
Registration rear sensor
(Registration rear sensor PCB ASSY)
Toner sensor
(Toner sensor PCB unit ASSY)
Registration
front actuator
Edge actuator
Registration rear actuator
ADF sensor PCB ASSY
(ADF front sensor/rear sensor)
