Brother MFC-7450

1-15
Confidential

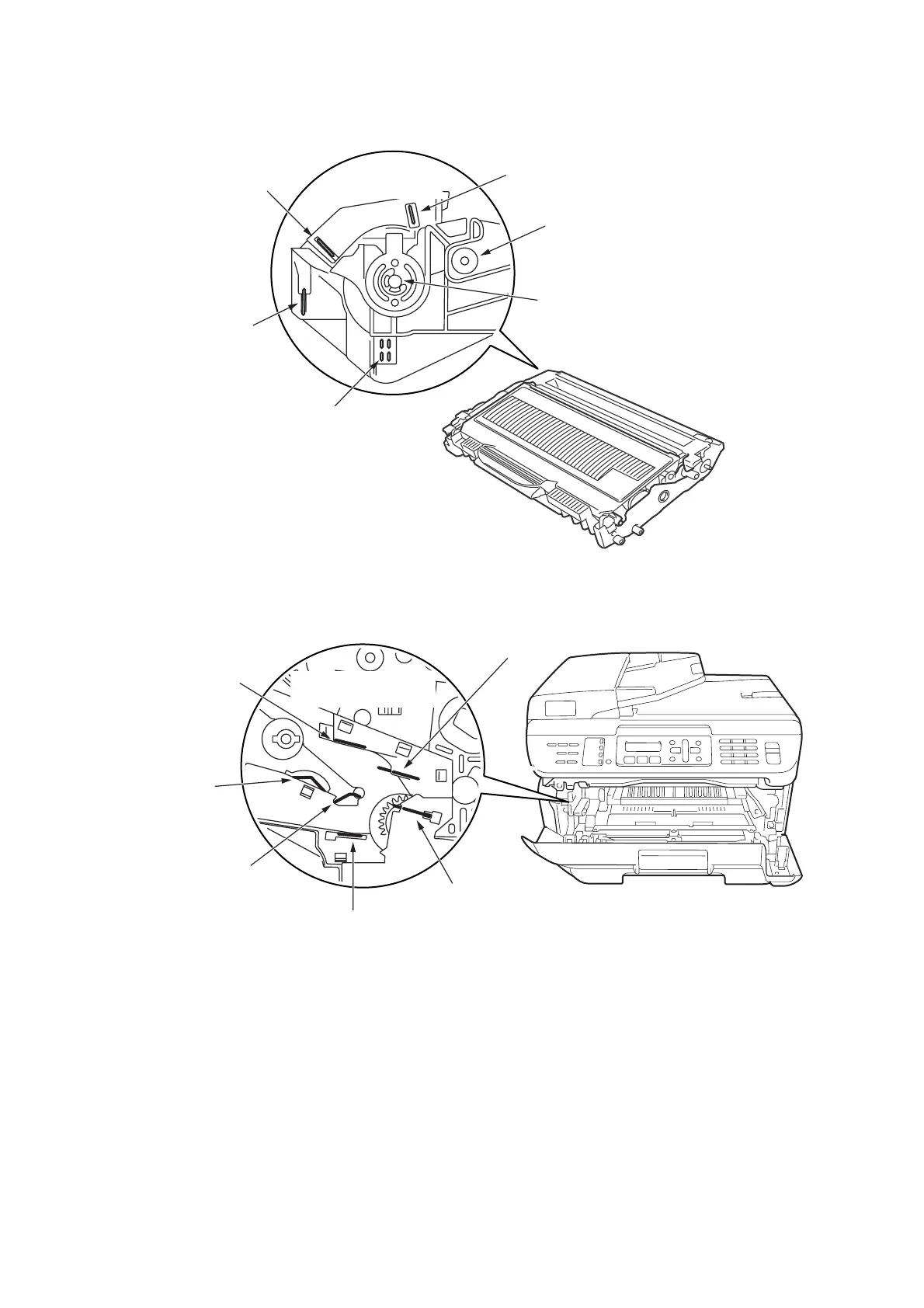

■ Electrodes location on the drum unit
Fig. 1-1
■ Electrodes location on the machine
Fig. 1-2
Side surface of
Drum unit
Charged electrode
Grid
Cleaner
Transfer roller
Exposure drum
Develop roller
Side surface of
Frame L ASSY inside
Grid
Cleaner
Transfer roller
Exposure drum
Develop roller
Charged electrode
