BRP E-TEC EVINRUDE - Page 24

24
Routine Service

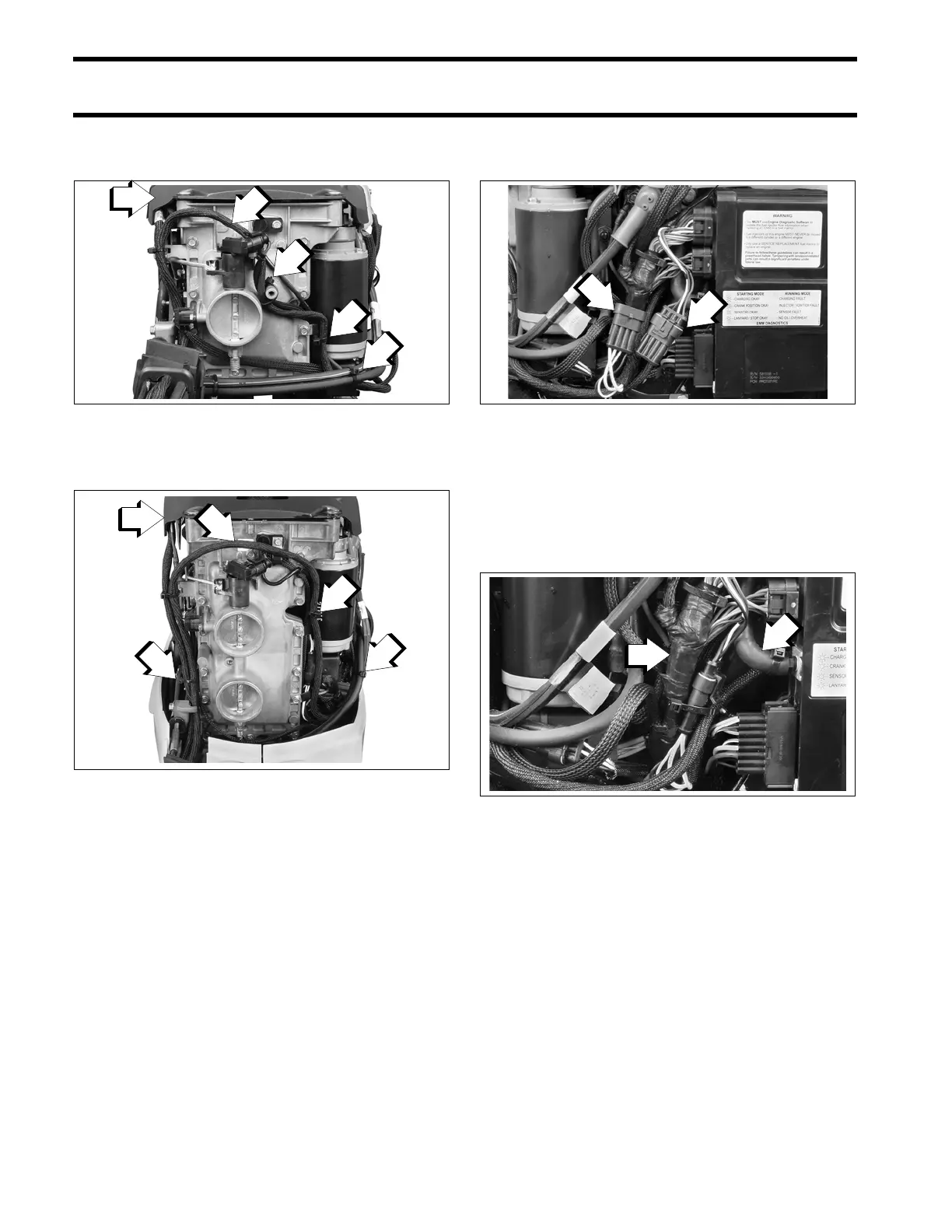

Outboard Rigging Connections
the TPS wiring, and behind the battery cable.
Loosely install tie straps as shown.
Connect the I-Command Engine Interface Cable
to the EMM CANbus connector.
2 Cylinder Models
To prevent interference with engine cover latch,
bundle excess wiring behind EMM cooling water
hose. Secure I-Command connectors to back side
of engine harness with tie strap.
2 Cylinder Models
1. Flywheel cover
2. Harness routing
3. Tie straps
006736
3 Cylinder Models
1. Flywheel cover
2. Harness routing
3. Tie straps
006742
3
3
3
1
2
3
3
3
1
2
1. I-Command network connector
2. EMM CANbus connector
006735
1. Engine harness
2. EMM cooling water hose
006738
1
2
1
2
