BRP EVINRUDE E-TEC 200 - Ignition Coil Installation; Ignition Coil Removal; Ignition Coil Servicing

111
ELECTRICAL AND IGNITION
IGNITION COIL SERVICING
6
IGNITION COIL
SERVICING

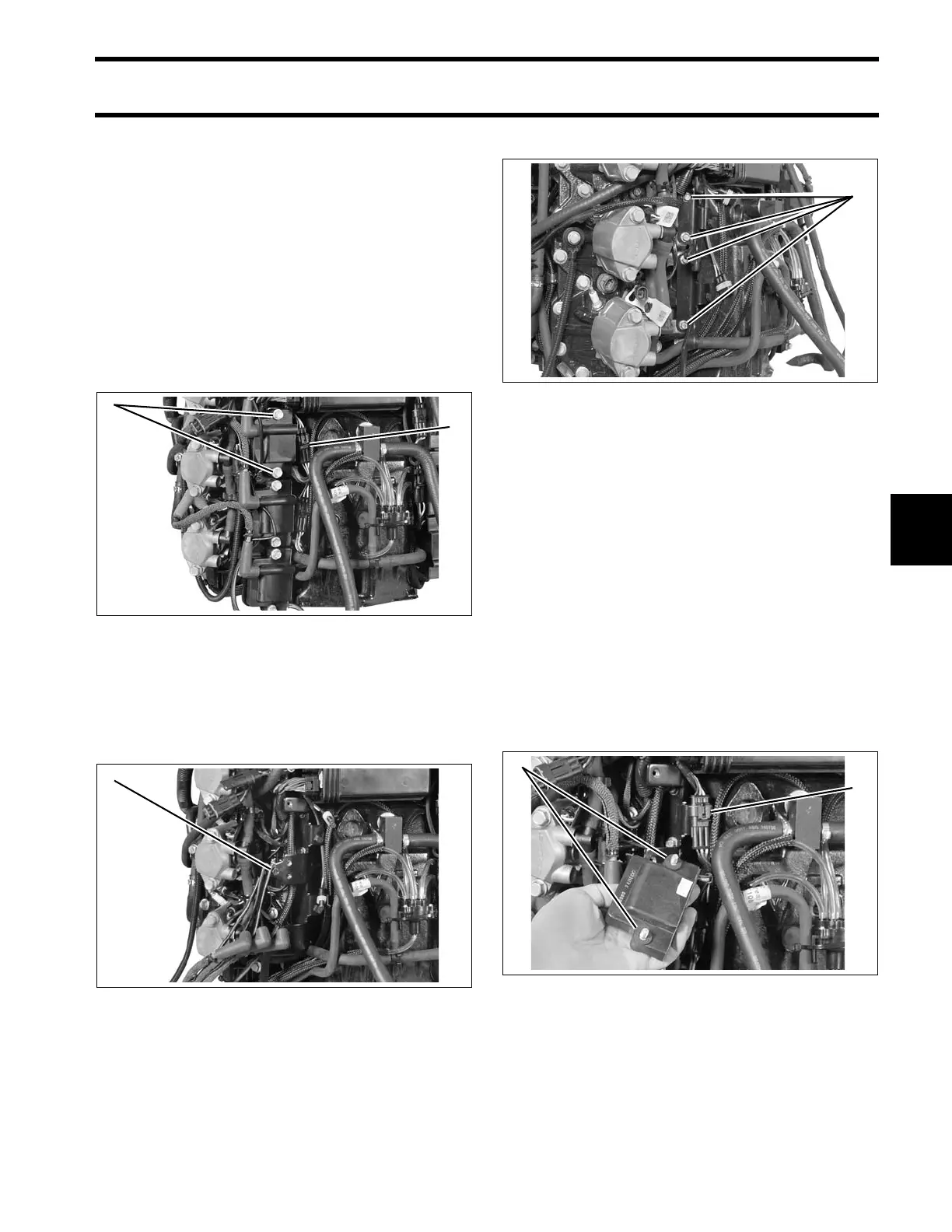

Ignition Coil Removal
Remove spark plug lead from ignition coil.
Disconnect ignition coil electrical connector.
Remove two ignition coil retaining screws.
Do not lose the rub ber washers between coil and
bracket.
Ignition Coil Bracket Removal
Remove all ignition coils from bracket.
Remove spark plug lead ground screw.
Remove four screws and bracket.
Ignition Coil Bracket Installation
Install bracket with four screws. Tighten screws to
a torque of 60 to 84 in. lb. (7 to 9.5 N·m).
Install spark plug leads with ground screw. Tighten
screw securely.
Ignition Coil Installation
Connect ignition coil e lectrical conne ctor. Place
electrical connector on its retainer.
Install one rubber washer on each screw . Inst all
screw through ignition coil.
Install remaining rubbe r washers on scre ws
between coil and bracket.
Install coil with washers on bracket.
Tighten screws to a torque of 60 to 84 in . lb. (7 to
9.5 N·m).
Install spark plug lead on ignition coil.
1. Screws
2. Connector
007204
1. Ground screw 007205
2
1
1
1. Screws 007206
1. Electrical connector
2. Rubber washers
007207
1
1
2
