BRP EVINRUDE E-TEC 200 - Oil Supply Diagrams

158
OILING SYSTEM

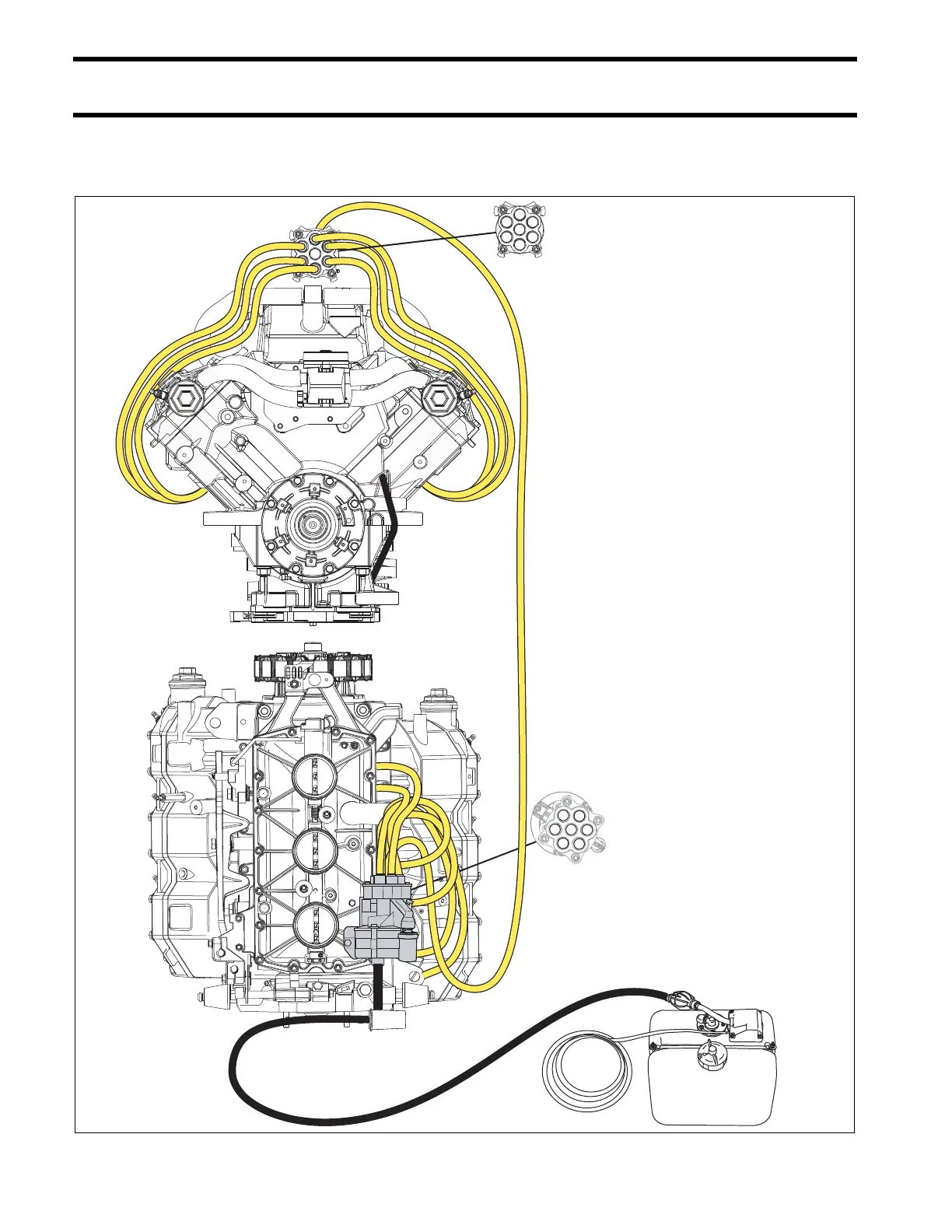

OIL SUPPLY DIAGRAMS
OIL SUPPLY DIAGRAMS
200 – 250 HP (3.3 L) MODELS
Primary oil manifold delivers
oil to crankcase fittings and
rear oil manifold
1. Cylinder 1
2. Cylinder 2
3. Cylinder 3
4. Cylinder 4
5. Cylinder 5
6. Cylinder 6
7. Rear oil manifold
7
1
2
3
4
5
6
1. Cylinder 2
2. Cylinder 4
3. Cylinder 6
4. Cylinder 1
5. Cylinder 3
6. Cylinder 5
Rear oil manifold delivers
oil to cylinder sleeves
1
2
3
4
5
6
008212
1.
2.
3.
4.
5.
6.
7.
8.
Oil tank assembly
Oil pick-up
Oil supply hose
In-line oil filter
Oil injector assembly
Oil distribution hoses
Oil pressure sensor
Rear oil manifold
