BRP EVINRUDE E-TEC 200 - Exhaust Housing Disassembly - 3.4 L Models

269
MIDSECTION
EXHAUST HOUSING SERVICE
12

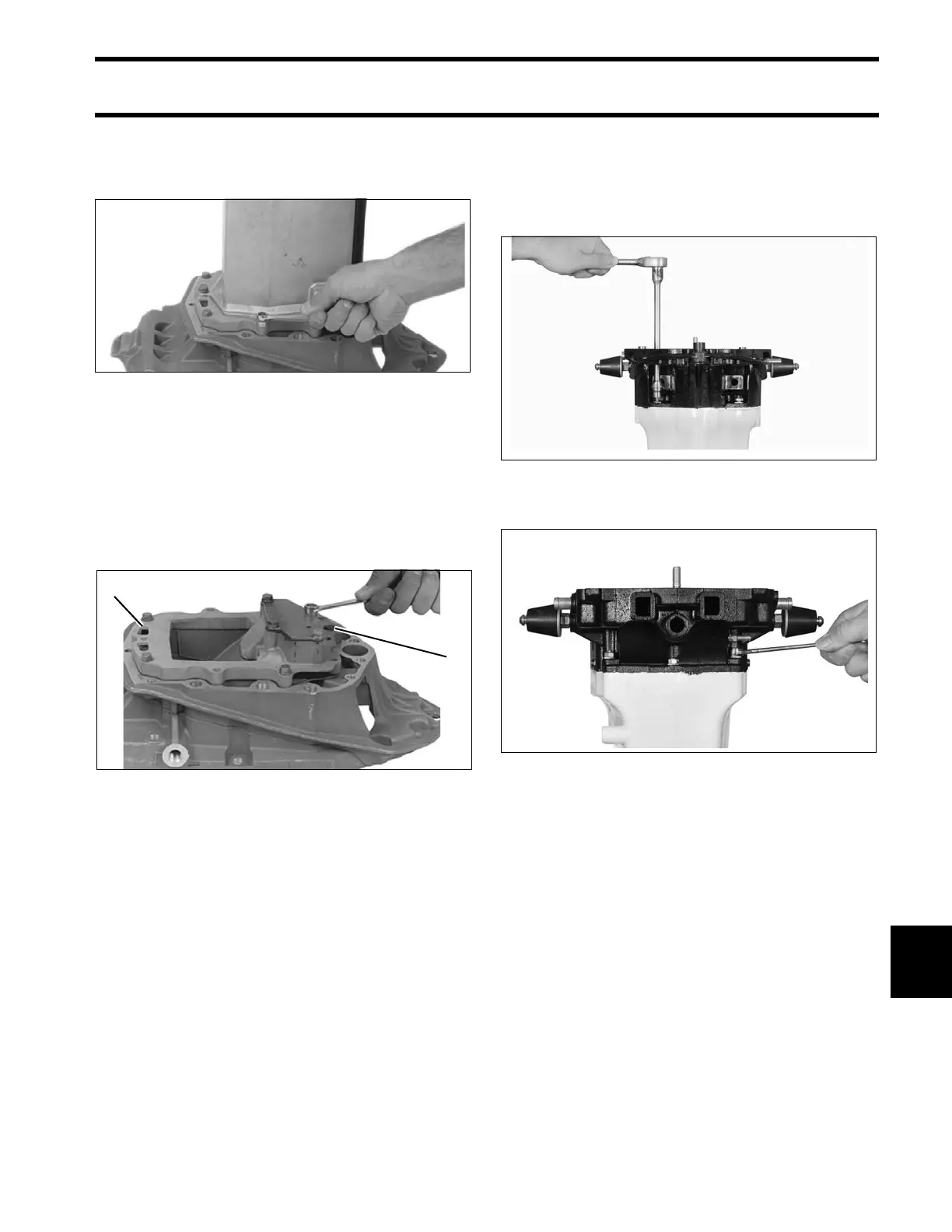

Mark the water tube for correct reassembly loca-
tion. Remove six inner exhaust ho using screws.
Remove the inner exhaust housing.
Remove the water tube and grommet from the
inner exhaust housing. Discard the grommet.
Loosen ret aining screws an d remove the cover
from water plate.
Loosen retaining screws a nd remove water plate
from the adapter.
Exhaust Housing Disassembly –
3.4 L models
Remove two front adapter to o uter exhaust hous-
ing screws.
Remove three nuts at rear of the adapter.
.
13638
1. Cover
2. Water plate
