EVINRUDE ICON REMOTE CONTROL SYSTEM

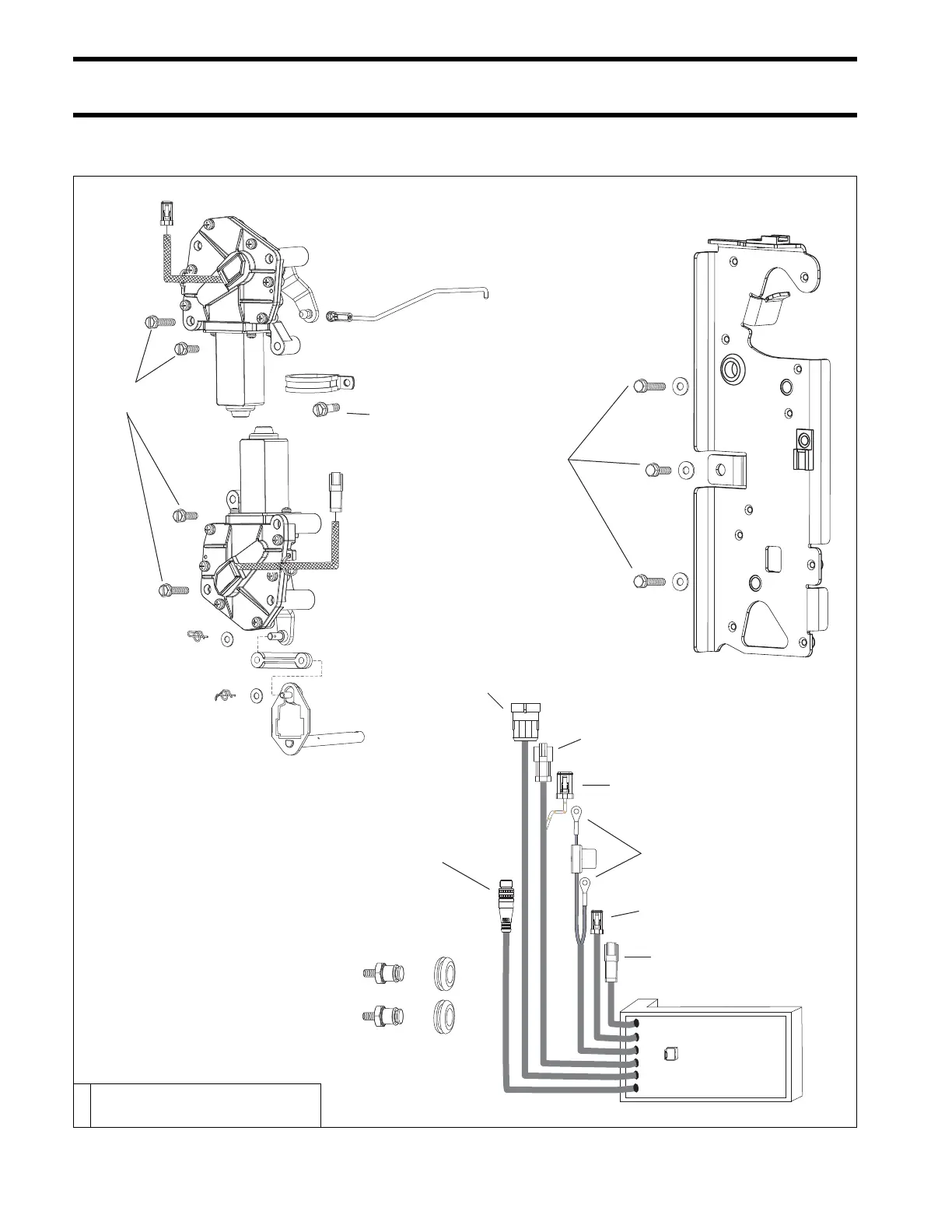

SERVICE CHART
SERVICE CHART
008091
60 to 84 in. lbs.
(7 to 9.5 N·m)
60 to 84 in. lbs.
(7 to 9.5 N·m)
F
18 to 20 ft. lbs.
(24.5 to 27 N·m)
F
60 to 84 in. lbs.
(7 to 9.5 N·m)
ICON buss
cable connector
ESM to EMM
connector
ESM to trim/tilt
connector
ESM power
supply harness
ESM to throttle
actuator connector
ESM to shift
actuator connector
ESM to engine harness
key switch connector
+
–
F Blue Nut Lock
