TRIM AND TILT
TRIM AND TILT SERVICE
14

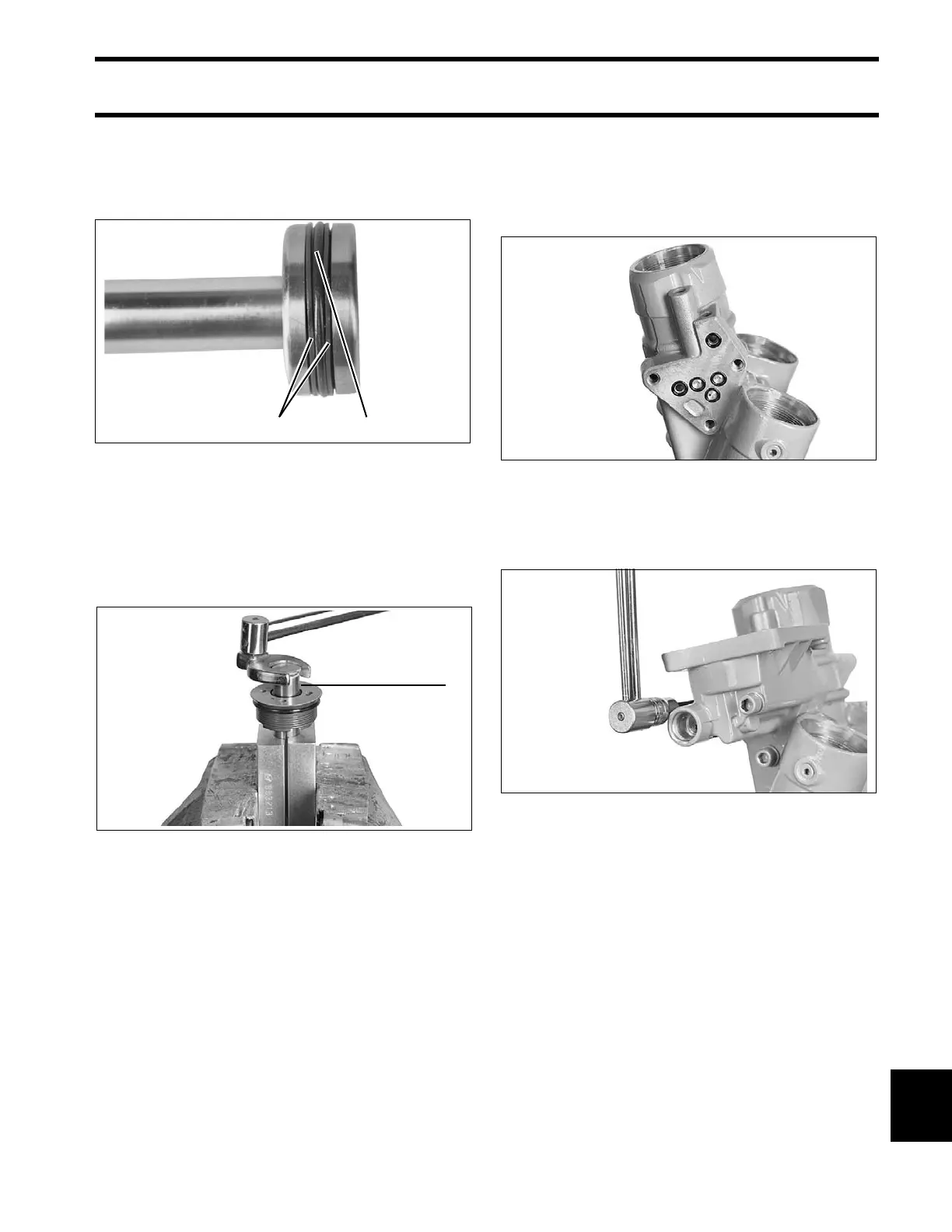

Lubricate a nd inst all a new O-ring and two new
back-up rin gs on the trim rod piston. Place o ne
back-up ring on each sid e of the O-ring. Position
the open end of the back-up rings 180° apart.
Using Hyd raulic Cylind er Rod Hold er,
P/N 983213, clamp the rod tightly in a vise a nd
lubricate the cap and rod . Slide the end cap onto
the rod and install thrust pad. Tighten thrust pad to
a torque of 84 to 108 in. lbs. (9.5 to 12 N·m).
Manifold and Reservoir
Installation
Lubricate five new manifo ld b ody O-rings. Place
them in the cylinder body.
Attach th e valve pump assembly to the cylind er
body with three Pozidriv screws. T ighten scre ws
to a torque of 60 to 84 in. lbs. (7 to 9.5 N·m).
Oil and in stall the manual release valve. Threa d
the valve just p ast the snap ring groo ve. Do n ot
install the snap ring at this time. The valve will be
1. O-ring
2. Back-up rings
41847
1. Thrust pad 41848
41849
41850
