ENGINE COVER SERVICE
LOWER COVER SERVICE
3
LOWER COVER SERVICE

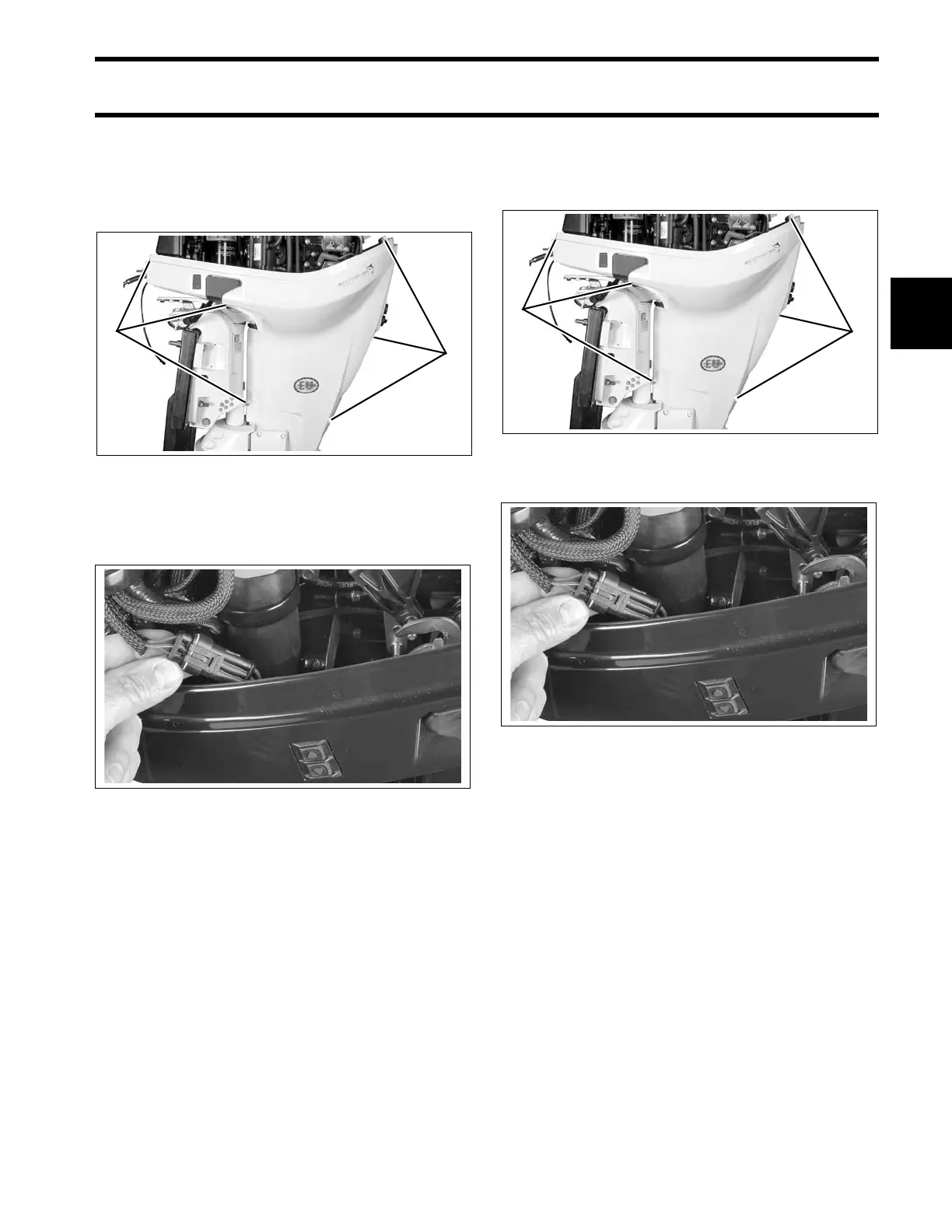

Lower Cover Removal
Remove lower engine cover screws.
Loosen po rt side cover slightly, an d d isconnect
trim/tilt switch con nector. Then, remove port and
starboard covers.
Lower Cover Installation
Install t he lo wer engine covers and tighten all
screws to a torque of 24 to 36 in. lbs. (3 to 4 N·m).
Connect trim/tilt switch connector.
1. Lower cover screws 004122
005246
1. Lower cover screws 004122
005246
