347
TRIM AND TILT
TRIM AND TILT REPLACEMENT
14
TRIM AND TILT
REPLACEMENT

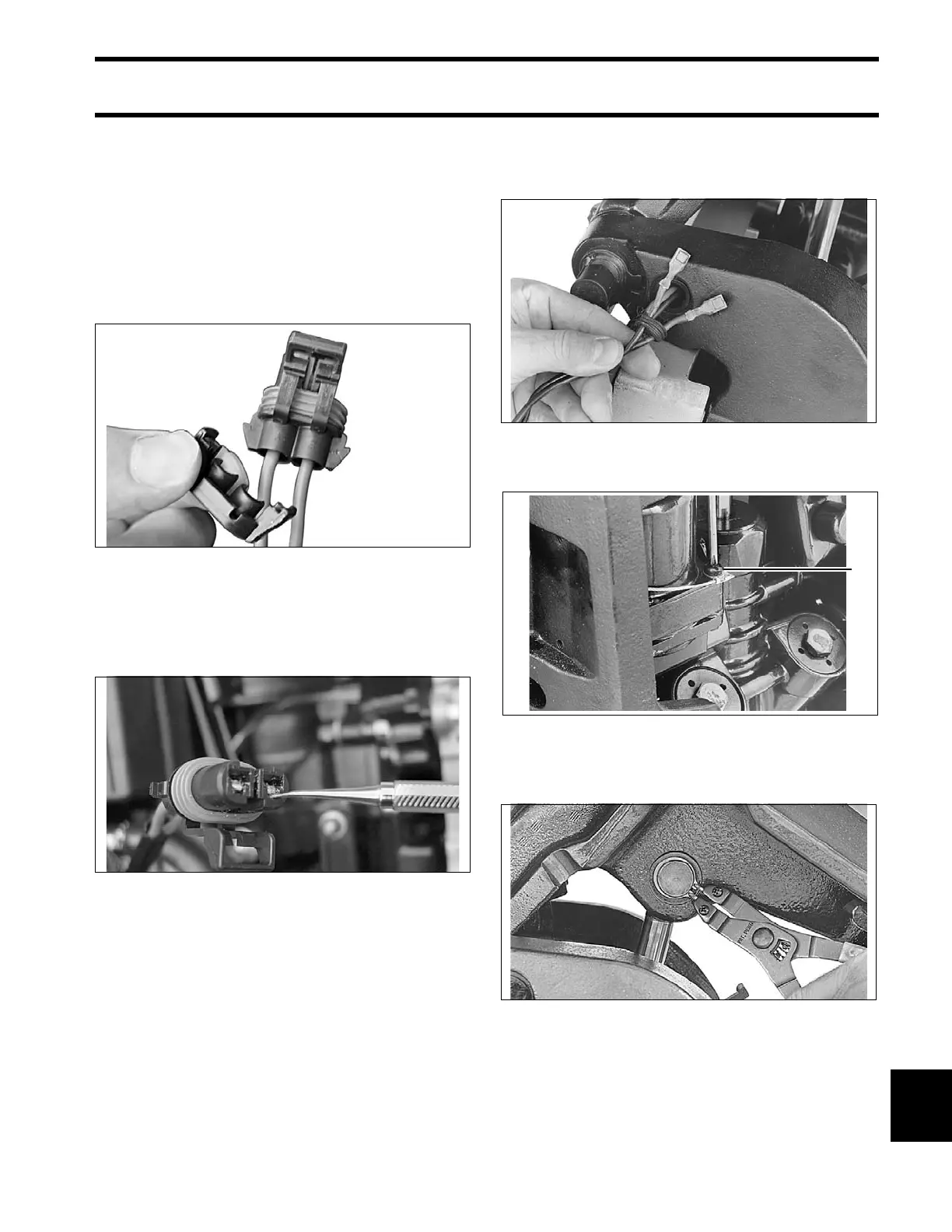

Removal
Raise the outboard and engage the tilt support.
Remove the rubber grommet from the blue/green
trim/tilt cable connector.
Remove the terminals from the co nnector by
using a suitable tool to depress the tab. While the
tab is depressed, pull on the wire from the rear of
the connector to release it from the connector.
Separate the trim/tilt unit wires in the braided tube
to p ermit removal t hrough the hole in t he ste rn
bracket.
Remove the ground wire from the trim/tilt unit.
Remove t he external sn ap rings from t he upp er
pin.
000686
000687
25078
1. Ground wire 25057
25064
