BRP EVINRUDE E-TEC 200 - FUEL SYSTEM REQUIREMENTS

FUEL SYSTEM

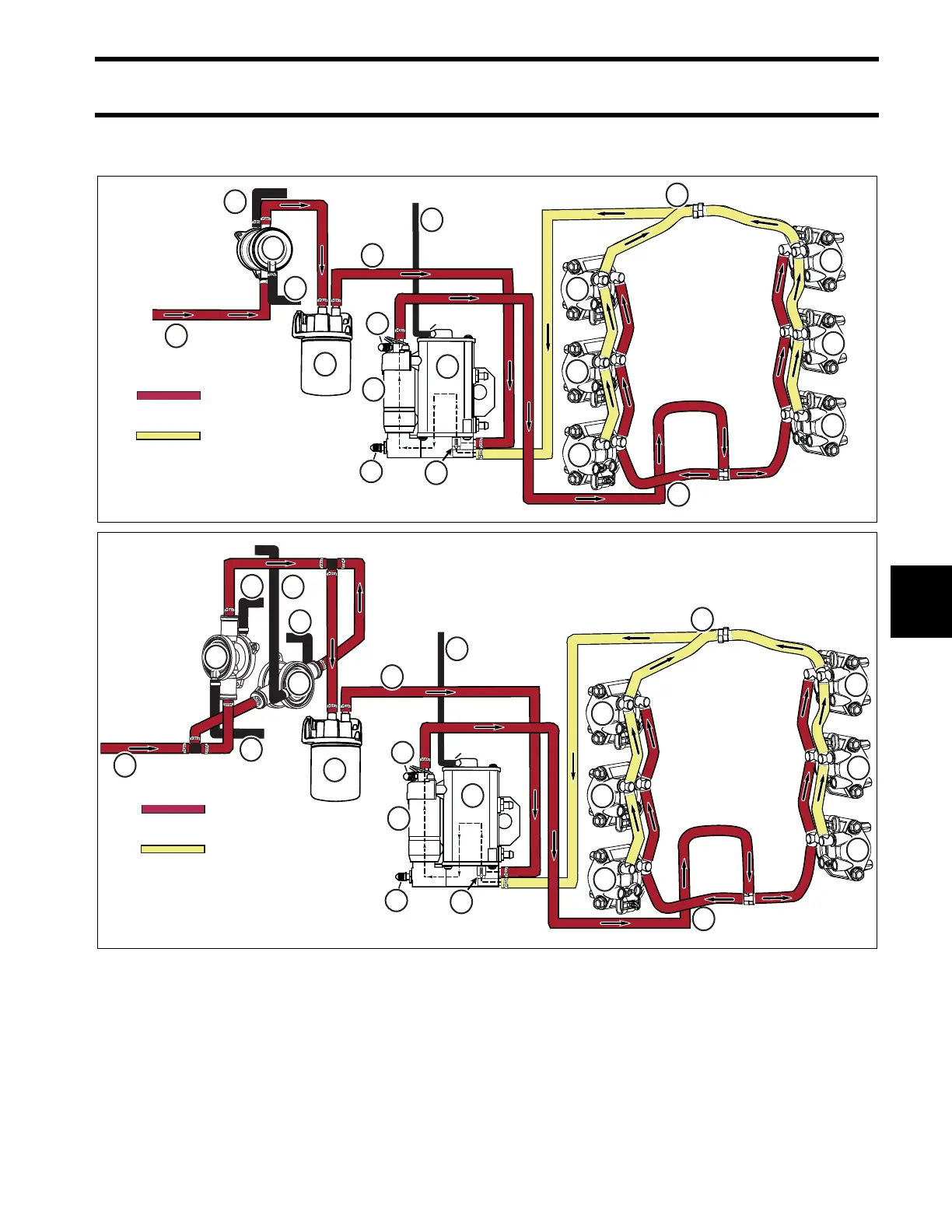

FUEL SYSTEM HOSE ROUTING
131
7
FUEL SYSTEM HOSE ROUTING
1.
2.
3.
4.
5.
6.
7.
Fuel supply from boat fuel system
Fuel lift pump (2 to 8 psi)
Pulse hose(s) from cylinder/crankcase
Water Separator / Fuel filter
Fuel supply to vapor separator
Vapor separator
Vent hose to throttle body
8.
9.
10.
11.
12.
13.
14.
Electric fuel circulation pump (20 to 35 psi)
Fuel supply manifold
Fuel injector(s)
Fuel return manifold
Pressure regulator (high pressure)
Test fitting (low pressure)
Test fitting (high pressure)
11
3
5
2
1
4
3
14
7
6
8
13
12
9
10
10
10
10
10
10
Fuel Supply
Fuel Return
3.3 L Models
003985
11
5
4
14
7
6
8
13
12
9
10
10
10
10
10
10
Fuel Supply
Fuel Return
3.4 L Models
006977
2
2
3
3
3
3
1
