359
TRIM AND TILT
TRIM AND TILT SERVICE
14
P/N 912084. Tighten caps to a torque of 60 to 70
ft. lbs. (81 to 95 N·m).

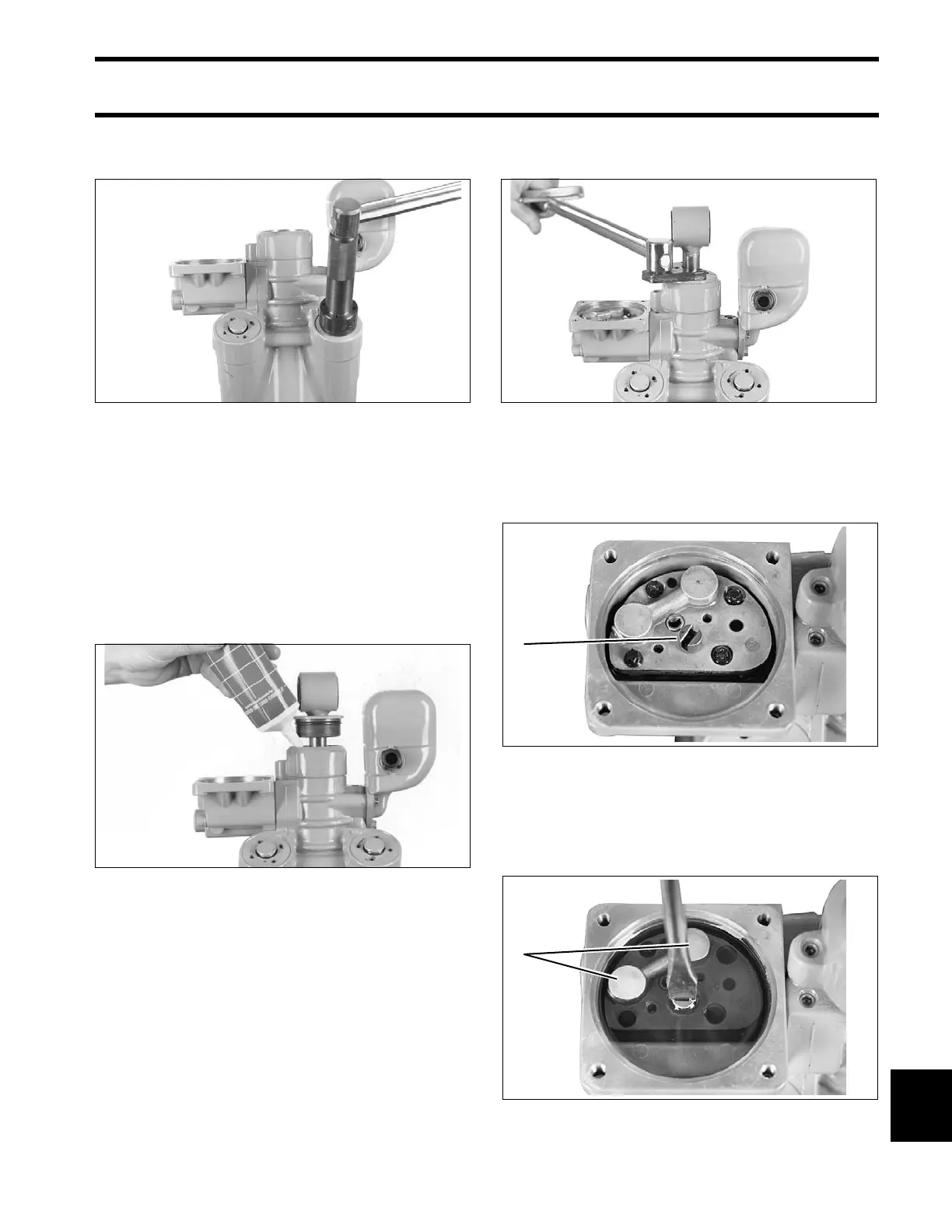

Tilt Rod Installation
Lubricate the tilt rod piston. Slide the end cap all
the way up on the rod assembly. Place the piston
end of the rod assembly into the cylin der body.
Push it in until the end cap just clears the cylinder
top. Leave enough room to pour fluid into the cyl-
inder. Fill the cylinder with Power Trim/Tilt & Steer-
ing Fluid. Failure to fill the cylinde r co uld cause
difficulty purging air from the unit.
Screw tilt cylinder end cap into cylinder body. Use
Tilt Cylinde r End Cap Remo ver/Installer,
P/N 326485, o r Universa l S panner W rench,
P/N 912084. Tighten cap to a torque of 58 to 87 ft.
lbs. (79 to 118 N·m).
Motor Installation
Position the pump manifold so the pump mounting
surface is level. Install the coupler into the pump.
Fill the pump cavity with Power Trim/Tilt & Steer-
ing Fluid up to the top of the two bosses. Rotate
the coupler clockwise and then counterclockwise
until no more air bubbles come out of the pump.
41868
41869
41870
1. Coupler 41852
1. Bosses 41854
