TRIM AND TILT
TRIM AND TILT SERVICE

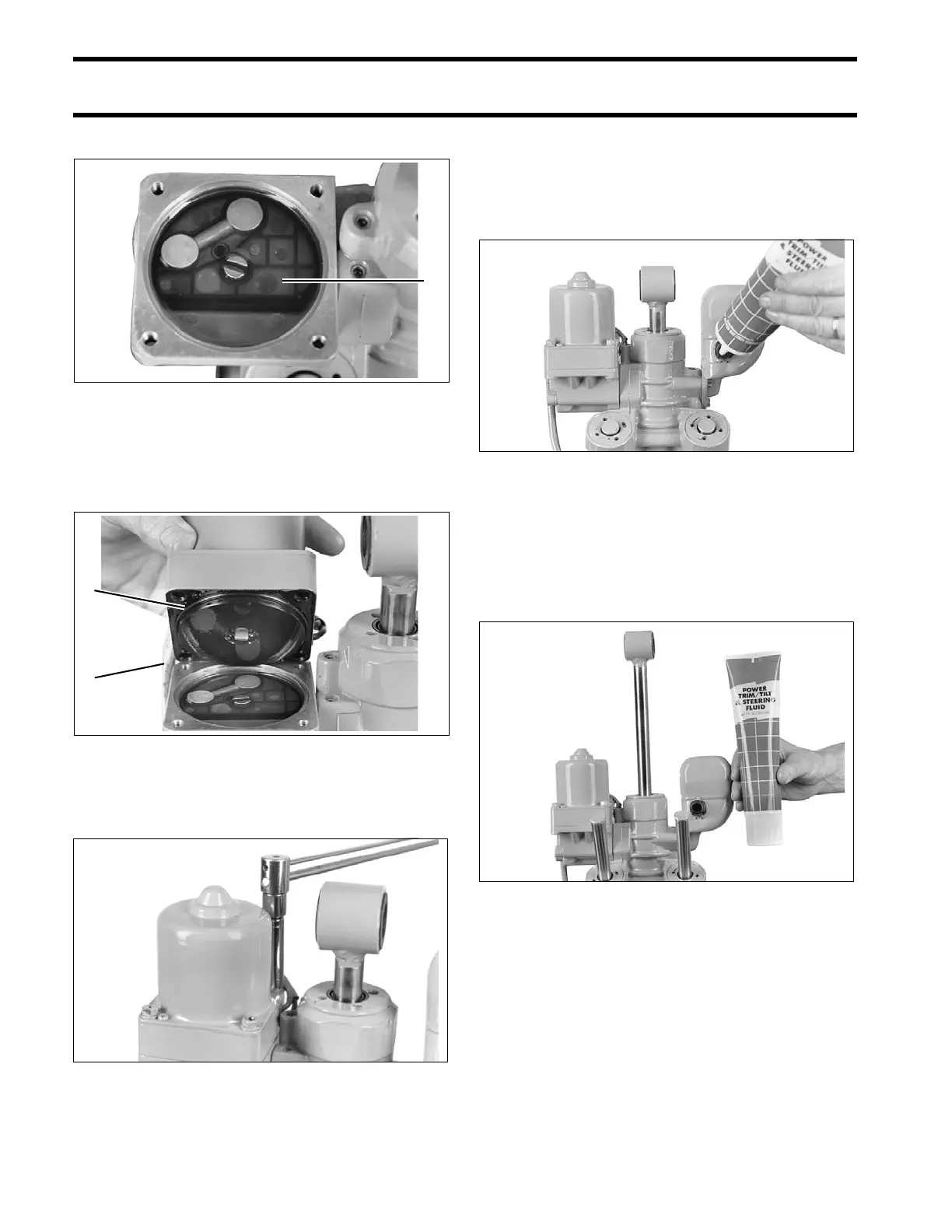

Install the filter screen.
Lubricate and place a new O-ring on the mo tor.
Make sure the cable is on the transom side of the
unit; align th e coupler slot with the motor shaf t.
Place the motor on the pump manifold assembly.
Install the four motor screws. Tighten the screws
to a torque of 35 to 52 in. lbs. (4.0 to 5.9 N·m).
Fill the reservoir to the bottom of the fill hole with
Power Trim/Tilt & Steering Fluid. Inst all a nd
tighten the reservoir cap. Turn the manual release
valve in until it sea ts. Cycle the unit up and down
several times to purge air.
Operate the unit to the full UP position, then run
down momentarily to release pressure. Check the
fluid leve l ag ain and add fluid , if necessary.
Remember that all rods must be completely up to
check the fluid leve l. Test the unit b y perfo rming
the Pressure Leakdown Test on p. 341.
1. Filter screen 41856
1. O-ring
2. Cable
41857
41858
41859
41885
