348
TRIM AND TILT

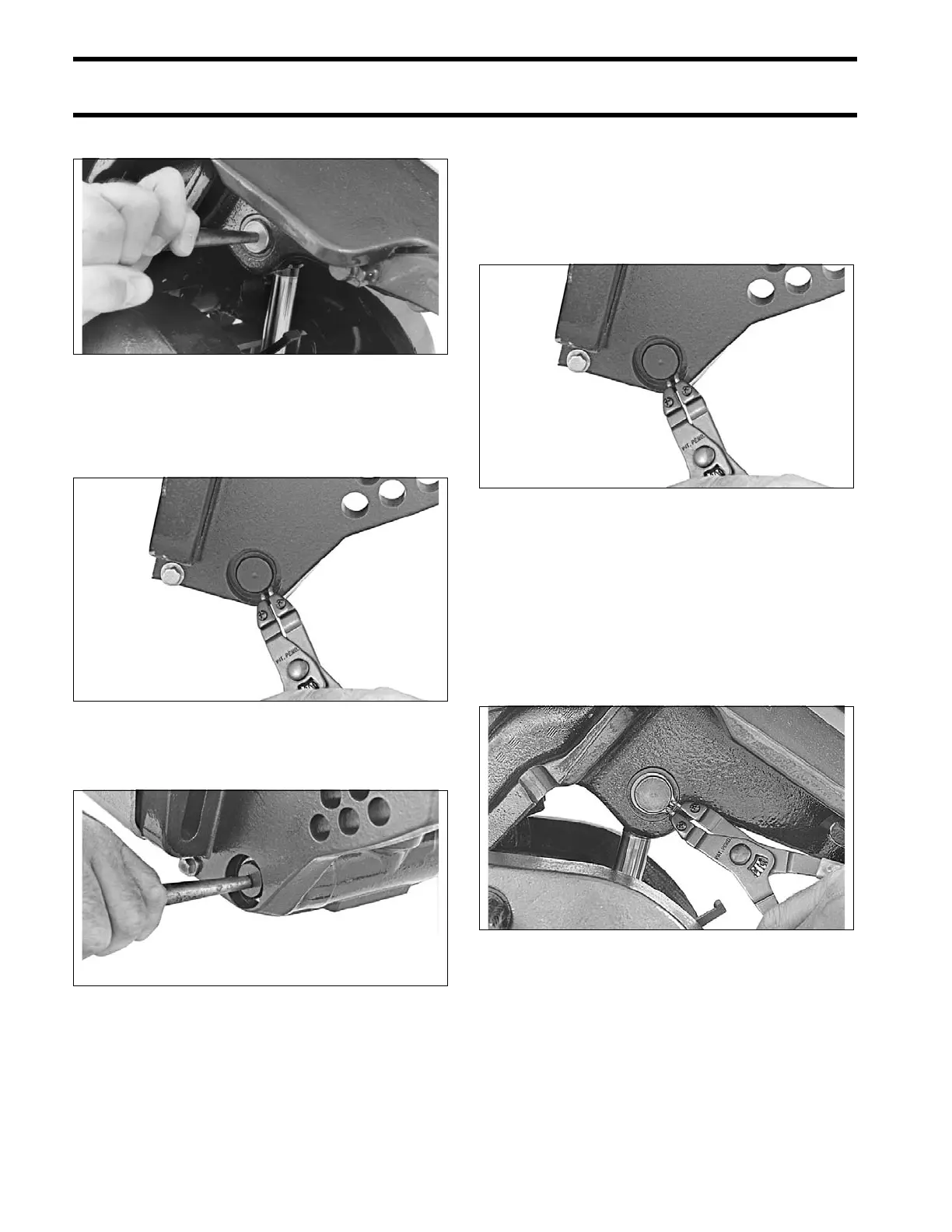

TRIM AND TILT REPLACEMENT
Use a punch to remove the upper pin.
Retract the tilt cylinder rod.
Remove th e extern al sn ap rings from th e lower
pin.
Use a punch to remove the lower pin and remove
the trim/tilt unit from the stern brackets.
Installation
Place trim/tilt unit into position. Apply Triple-Guard
grease to the lower pin and install the pin.
Install external snap rings on lower pin with sharp
edge of ring facing out.
Loosen the manual release valve if necessary and
extend tilt cylinder rod to match with holes in
swivel bracket.
Apply Triple-Guard grease to upper pin and install
the pin.
Install e xternal sn ap rin gs on to uppe r pin with
sharp edge facing out.
25065
25077
25076
25077
25064
