177
OILING SYSTEM
OILING SYSTEM TESTS
8
on the hose for at least five min utes. Re pair or
replace any le aking components. Reinstall the oil
hose.
Check height of pickup assembly.
Place a new seal on oil t ank and reinstall pickup
with filter into oil tank. Install and tighten screws.
Oil Injection Pump Function Test
Remove oil distribution h ose from fitting at crank-
case. Squeeze oil supply primer bulb to provide oil
to injection pump.
Running Test
Start the out board and observe oil flo w. Confirm
that a small amo unt of oil is discha rged while
injection pump is activated.
Static Test
Use the Evinrude Diagnostics software oil injector
test to activate inje ctor. Confirm t hat a small
amount of oil is discharged while injection pump is
activated.
Results:
• Oil flows from distribution hose, comp are to oil
flow at other distribution hoses.
• If one or more hoses fail to discharge oil, check
for a kinked or restricted hose before replacing
the oil injection pump assembly.
Oil Injection Fittings Flow Test
Make sure the oil injection fittings of the cylind er
and crankcase assembly allow fluid to move.
Remove oil distrib ution hose fro m cra nkcase fit-
ting. Temporarily install a length of oil hose.on the
fitting.
Use a Syringe, P/N 346936, filled with isop ropyl
alcohol to force fluid through hose and fitting.
LOW OIL Sending Unit Test
Remove oil from the oil tank
Turn th e ke y switch ON. The d ash mounte d
Engine Monitor syst em should show a LOW OIL
warning.
Once the warning has been confirmed, refill the oil
tank. The LOW OIL warning should stop when the
oil level exceeds one-quarter of oil tank’s capacity.

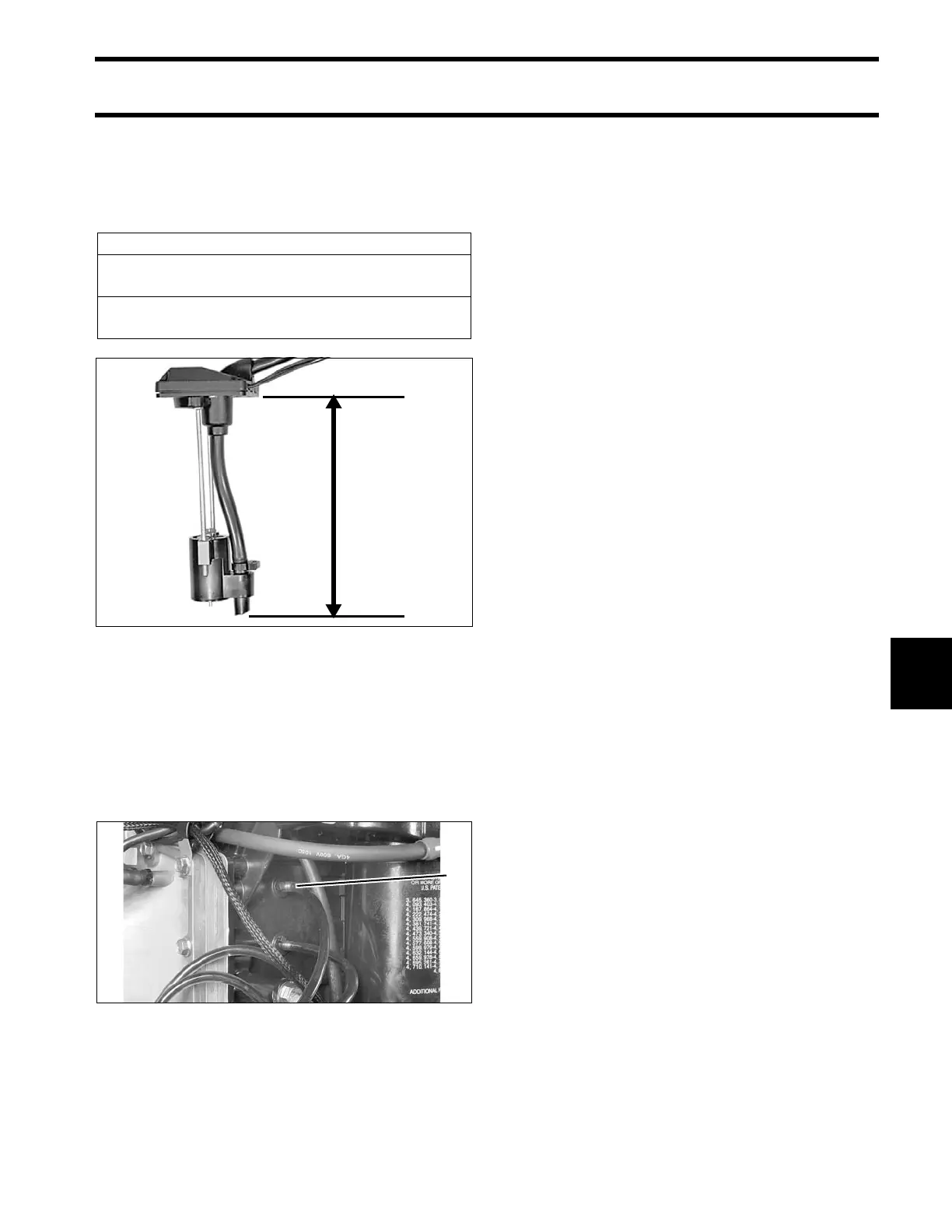

Pickup Assembly Height
1.8 gallon tank
6.84 to 6.96 in.
(174 to 177 mm)
3.0 gallon tank
8.74 to 8.86 in.
(222 to 225 mm)
Height of Oil Pickup Assembly COB5657A
1. Crankcase fitting 004224
