202
EVINRUDE ICON REMOTE CONTROL SYSTEM
ICON COMPONENT SERVICING

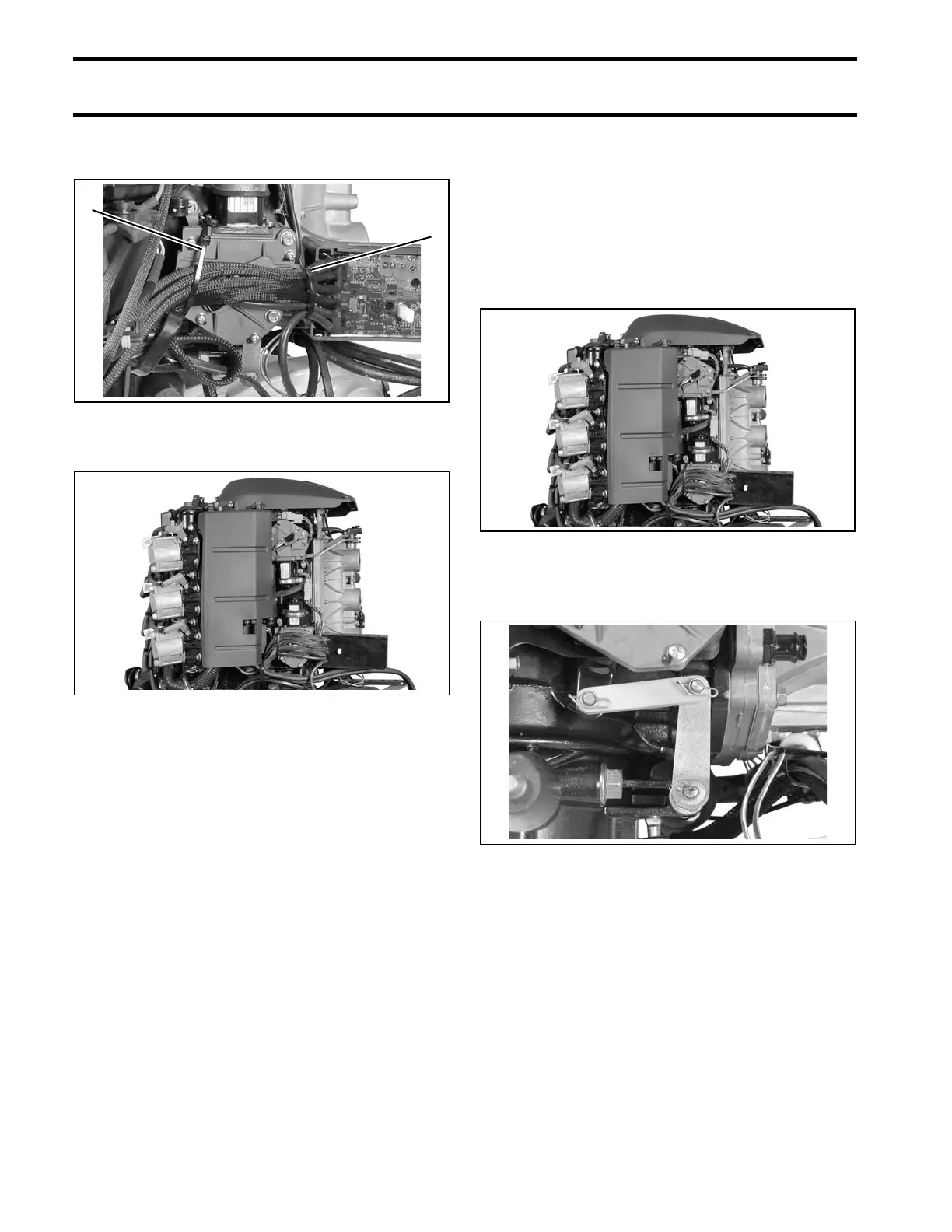

Route all ESM harnesses as shown and secure to
shift actuator with tie straps, P/N 907833.
Install electrical bracket cover.
IMPORTANT: Calibrate shif t a nd thrott le actua-
tors. Refer to Calibrate Actuator Stroke on
p. 207.
Shift Actuator
Removal
Disconnect the battery cables at the battery.
Remove electrical bracket cover.
Observe and note all wire routings before disas-
sembling.
Remove clip s and wash ers from the shift link.
Remove the shift link.
1. Large tie straps 008508
007525
007525
008509
