120
ELECTRICAL AND IGNITION
ELECTRIC STARTER SERVICING

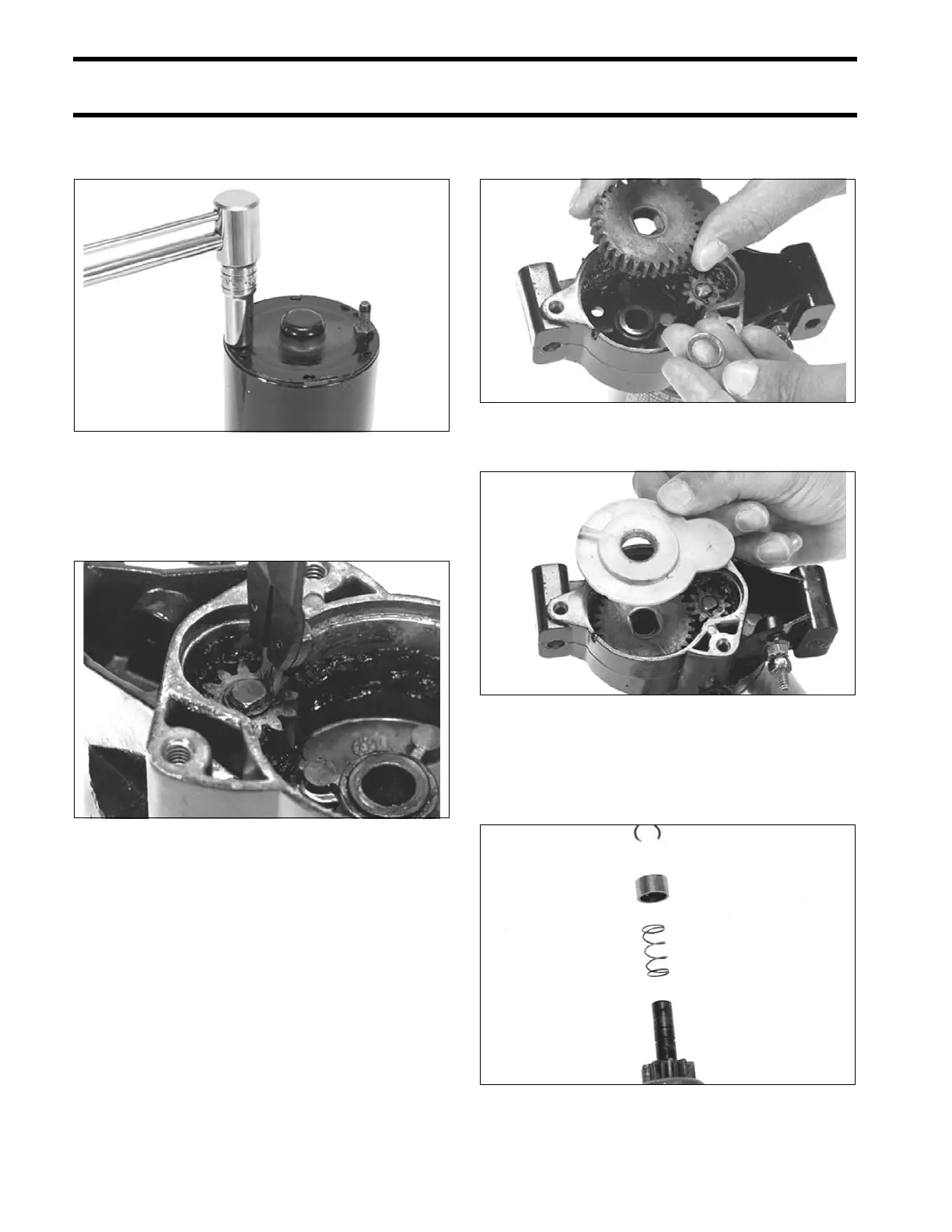

Install the two thru-bolts. Tighten to a torque of 50
to 65 in. lbs. (5.6 to 7.3 N·m).
Lightly coa t the drive gear with Triple-Guard
grease, and install it on the armature shaft. Install
the retaining ring (flat side up) with No. 2 e xternal
retaining ring pliers.
Lightly coa t the gear housing bearing with Moly
Lube. Lightly coat th e d riven ge ar wit h Triple-
Guard grease. Install the thrust washer and driven
gear.
Install the weather cover.
If removed , install the spring and sp acer (lar ge
diameter up) on the pin ion shaf t. Secure with
retaining rin g. Install bushing and wave wash er
(convex side down).
30363
30366
30362
30361
30369
