ELECTRICAL AND IGNITION
CONNECTOR SERVICING
6
AMP Connectors
IMPORTANT: Always use the appropriate meter
test probe s and ada pters when testing compo-
nents fitted with these terminals. Electrical grease
is NOT used on AMP connectors.

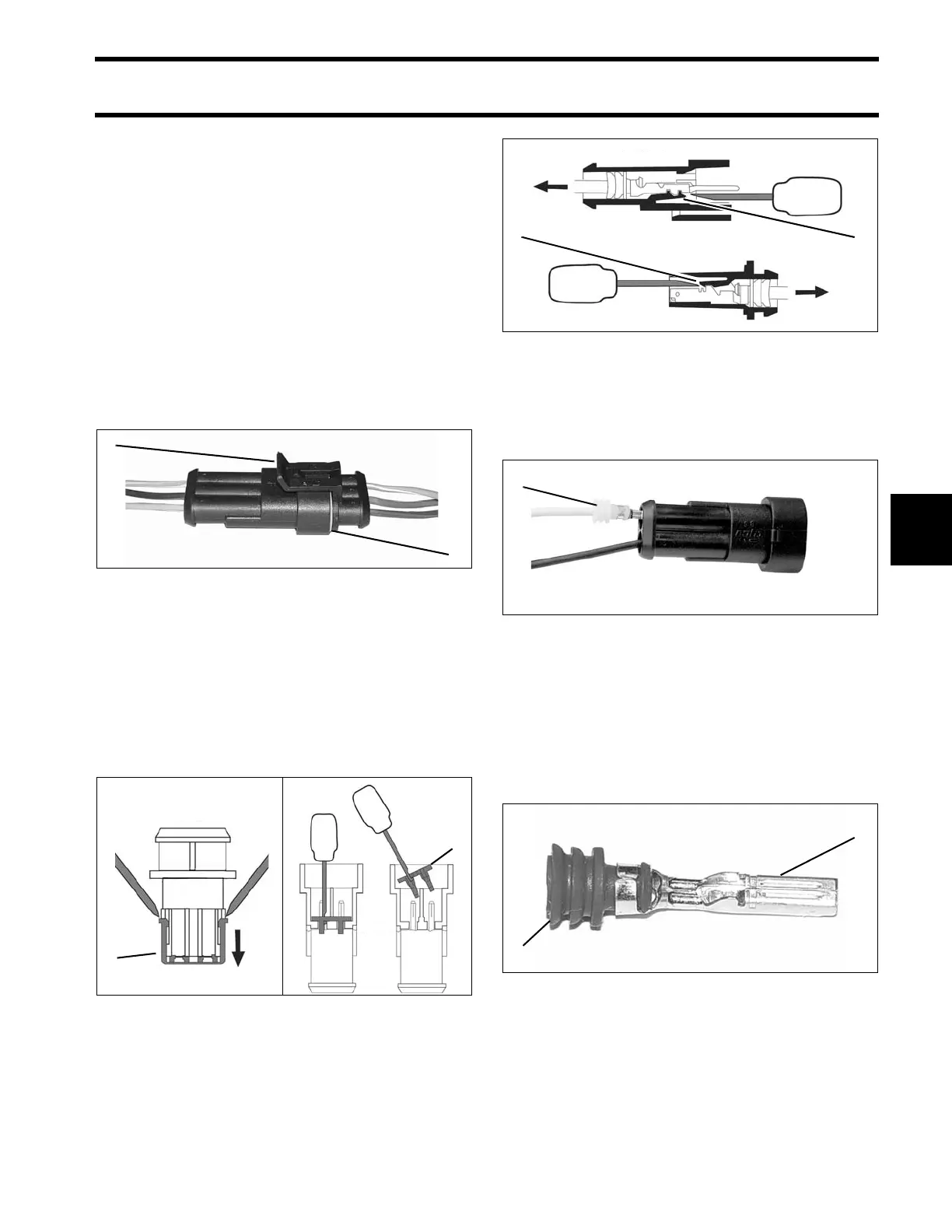

SUPERSEAL 1.5
Disconnect
Lift latch. Pull connectors apart.
Connect
Confirm the seal is in place. Push conn ectors
together until latched.
Terminal Removal
Use Secondary Lock Tool, P/N 777078, to release
anti-backout device of conn ector hou sing. Next,
use Primary Lo ck Tool, P/N 77 7077, to release
locking tab of connector housing. Release locking
tab a nd pull on wire to remove fro m connector
housing.
Terminal Installation
Align terminal with co nnector housing. Push con-
nector and seal into housing until seated.
Align anti-backout d evice with conne ctor housing
and terminals. Use Seco ndary Lock In staller,
P/N 777079, to seat device in connector.
Crimping Terminals
Crimping Superseal 1.5 terminals requires AMP
Crimp Tool with dies, P/N 777281.
1. Latch
2. Seal
002448
1. Anti backout device, plug
2. Anti backout device, receptacle
002449
002450
1. Locking tab, plug
2. Locking tab, receptacle
002447
1. Terminal and seal 002451
1. Terminal
2. Seal
002452
