242
POWERHEAD

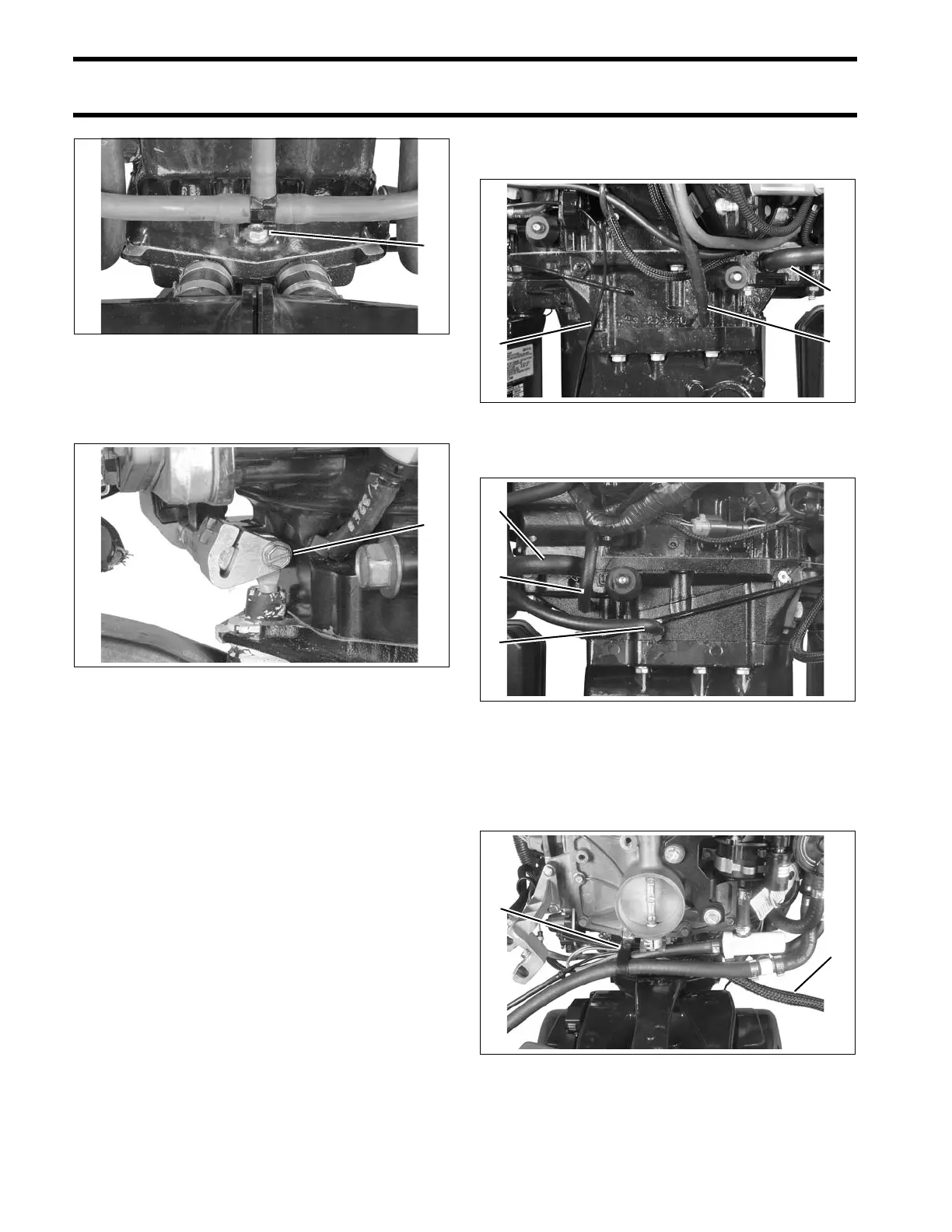

POWERHEAD INSTALLATION
Place the shift rod in the shift rod lever. Install the
retaining pin an d washer. Tighten pin to a torque
of 60 to 84 in. lbs. (7 to 9.5 N·m).
IMPORTANT: Make sure th e gea rcase shif ts
solidly into both forward and reverse and that pro-
peller shaft spins freely in neutral.
Install wa ter hoses and exha ust back pressure
hose.
Route power trim harness through clamp and con-
nect to engine harness.
1. Rear powerhead nut 004252
1. Shift rod pin 004241
Port side
1. Cooling hose (from exhaust plenum)
2. Cooling hose (from vapor separator)
3. Speedometer hose
008443
Starboard side
1. Cooling hose (to exhaust plenum)
2. Exhaust back pressure hose (to EMM)
3. Cooling hose (from block) – 3.3 L models
005042
1. Trim harness
2. Clamp
006992
