317
GEARCASE – STANDARD ROTATION
GEARCASE ASSEMBLY
13

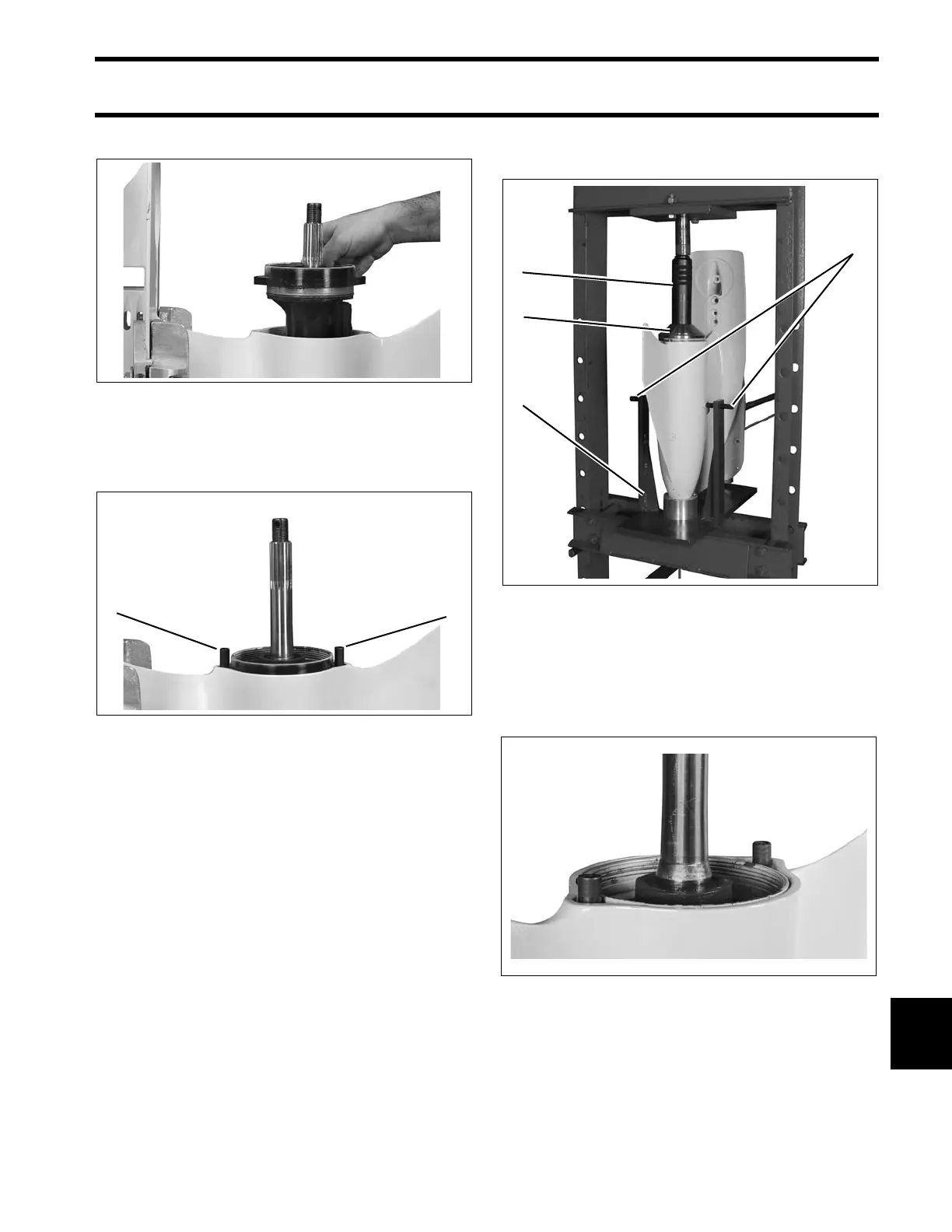

Place bearing housing in gearcase.
Align ret aining holes in bearing housing with
screw holes in gearcase . Thread Alignment Pins,
P/N 354140, into gearcase.
Use Installer Handle, P/N 345822, Propeller Shaft
Bearing Housing In staller, P/N 354057, Gearcase
Fixture, P/N 354059 an d an approp riate floor
press (10 ton or gre ater) t o inst all hou sing into
gearcase. Align and level gearcase assembly in
fixture as shown. Secure fixture to floor press.
Housing must be completely sea ted in gea rcase
to inst all ret ainer screws. Bearing housing is
approximately level with gearcase.
006846
1. Alignment pins 006926
1. Gearcase fixture, P/N 354059
2. Vertical alignment screws
3. Handle P/N 345822
4. Housing installer P/N 354057
006927
006928
