325

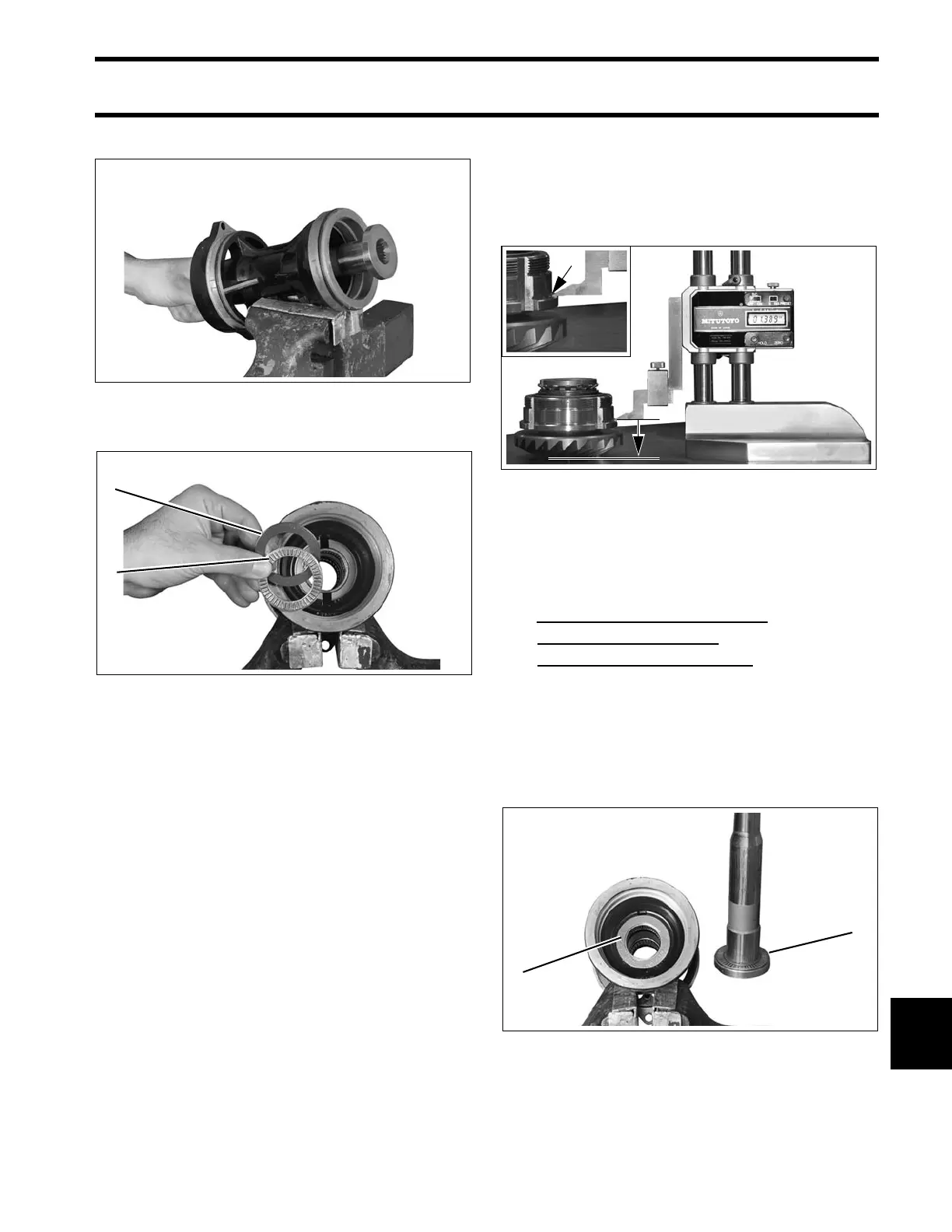

GEARCASE – COUNTER ROTATION
SHIFTER, BEARING AND SEAL SERVICING
13
Push propeller shaft out of the bearing housing.
Remove the thrust washer and thrust bearing.
For se al a nd be aring se rvice re fer to Propeller
Shaft Bearing Housing Service on p. 308.
Assembly
Position the forward gear bearing housing assem-
bly on a flat, level surface. (Mirror or glass can b e
used.) Use depth gauge to measure distance from
flange of housing to flat surface as shown.
Add the appropriate shims to create a d imension
of 0.140 in. (3.556 mm).
To determine thickness of shims; use the following
example:
1.389 in. reading on the gauge
+ 0.011 in. shims required
= 1.400 in. required dimension
Apply Needle Bearing grease to the thrust bear-
ing. Position bearing around shoulder on the pro-
peller shaft.
Apply Needle Bearing grease to the thrust washer.
Place washer in recess of bearing housing.
006939
1. Thrust washer
2. Thrust bearing
006940
1. Flange 006855
1. Thrust bearing
2. Thrust washer
006941
