TRIM AND TILT
TRIM AND TILT SERVICE
14

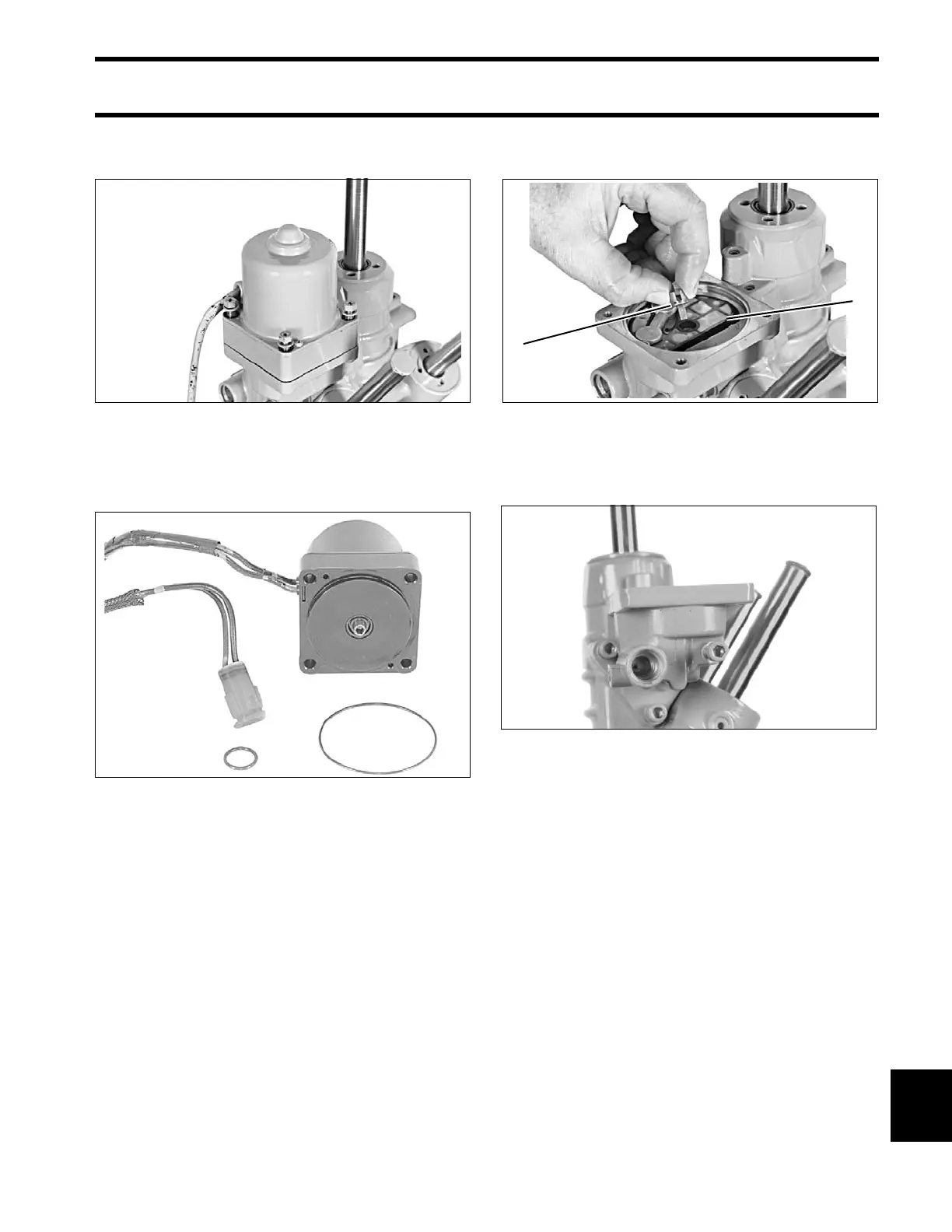

Remove the four screws securing motor to pump
manifold assembly.
Remove the wire shield from the pump manifold.
Remove the motor an d in spect t he motor O-ring
and the O-ring on the cable connector.
Remove and inspect the coupler. Remove the fil-
ter screen fro m th e pump manifo ld. Che ck the
machined surfaces on the manifo ld for nicks and
scratches. The pump manifold is not se rviceable.
Do no t remove the pump or any contro l va lves
from the manifo ld. Clea n the screen with a mild
solvent and inspect it for tears, clogging, or other
damage.
Remove the three Allen head screws securing the
pump manifold assembly to cylinder body.
IMPORTANT: Individual parts in the pump mani-
fold assembly are not available separately. Do not
remove pump or any control valves from the body.
41760
22878
1. Coupler
2. Filter screen
41763
41798
