MIDSECTION

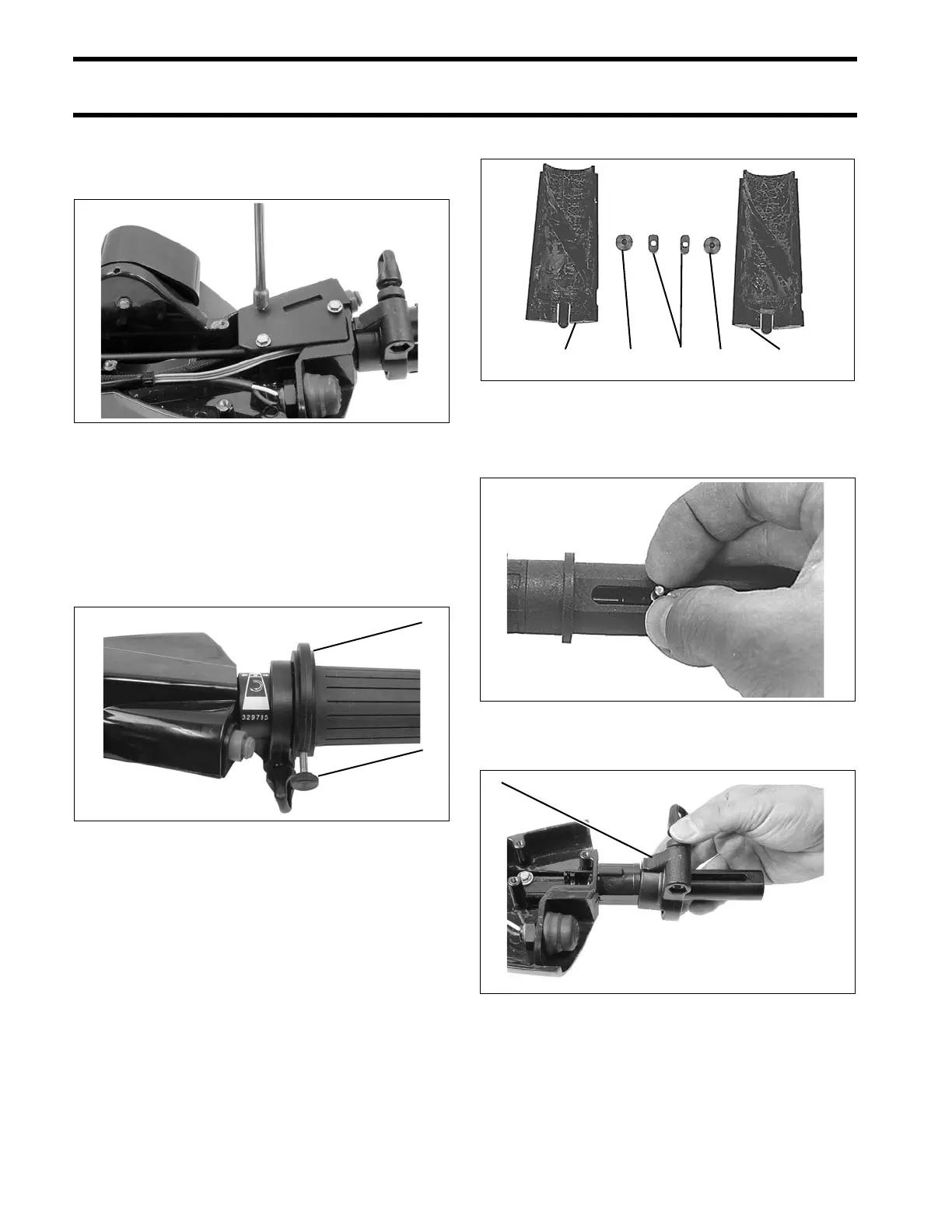

TILLER HANDLE SERVICE – LONG HANDLE
Remove stop switch cover screws, unplug stop
switch electrical connector and remove stop
switch assembly.
Disconnect trim switch connector. Remove con-
nector from trim switch wires. Refer to CONNEC-
TOR SERVICING on p. 120.
Use Twist-Grip Remover, P/N 390767, to depress
the grip detents. Tighten screw and remove the
grip by pulling grip.
Remove the helix halves, rollers, and guides.
Pull the throttle pin out of the cable.
Remove the throttle friction control.
006713
1. Twist-Grip Remover
2. Screw
006710
1. Helix halves
2. Rollers
3. Guides
COA2674
006712
1. Throttle friction control 006671
