MIDSECTION

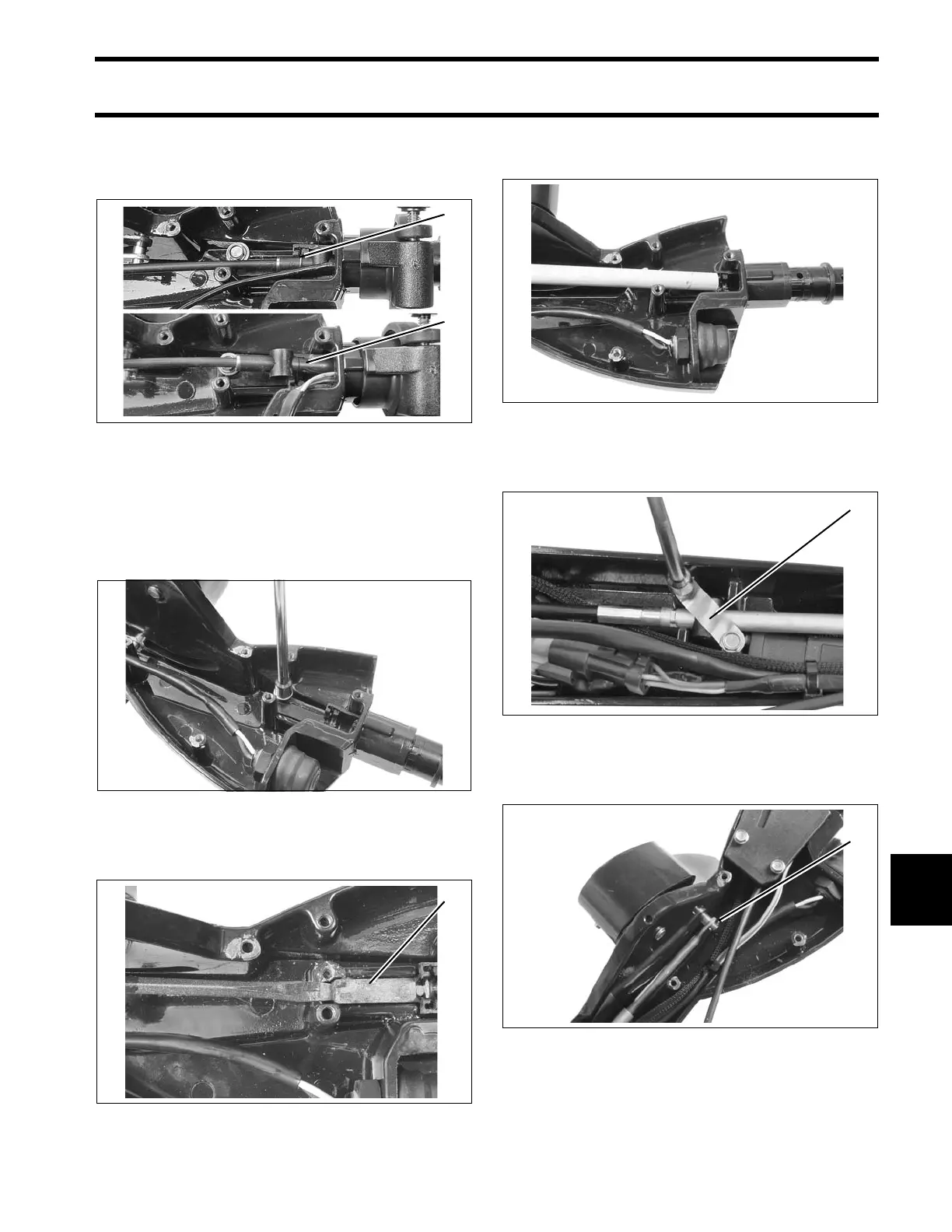

TILLER HANDLE SERVICE – LONG HANDLE
11
Remove the throttle cable retaining clip. Pry the
cable trunnion out of the steering handle and
remove cable.
The trim switch wiring can now be removed from
the inner handle.
Remove the screw and washer retaining the inner
handle tab.
Use an appropriate tool to carefully pry up on the
inner handle retaining tab.
Use a wooden dowel and a soft mallet to remove
the inner handle.
Remove shift cable retainer from shift cable trun-
nion.
Remove cotter pin from shift handle pin. Remove
shift cable.
1. Retainer
2. Throttle cable trunnion
006674
006681
1. Inner handle retainer tab 006679
1
2
1
006678
1. Shift cable retainer 006721
1. Cotter pin 006708
1
1
